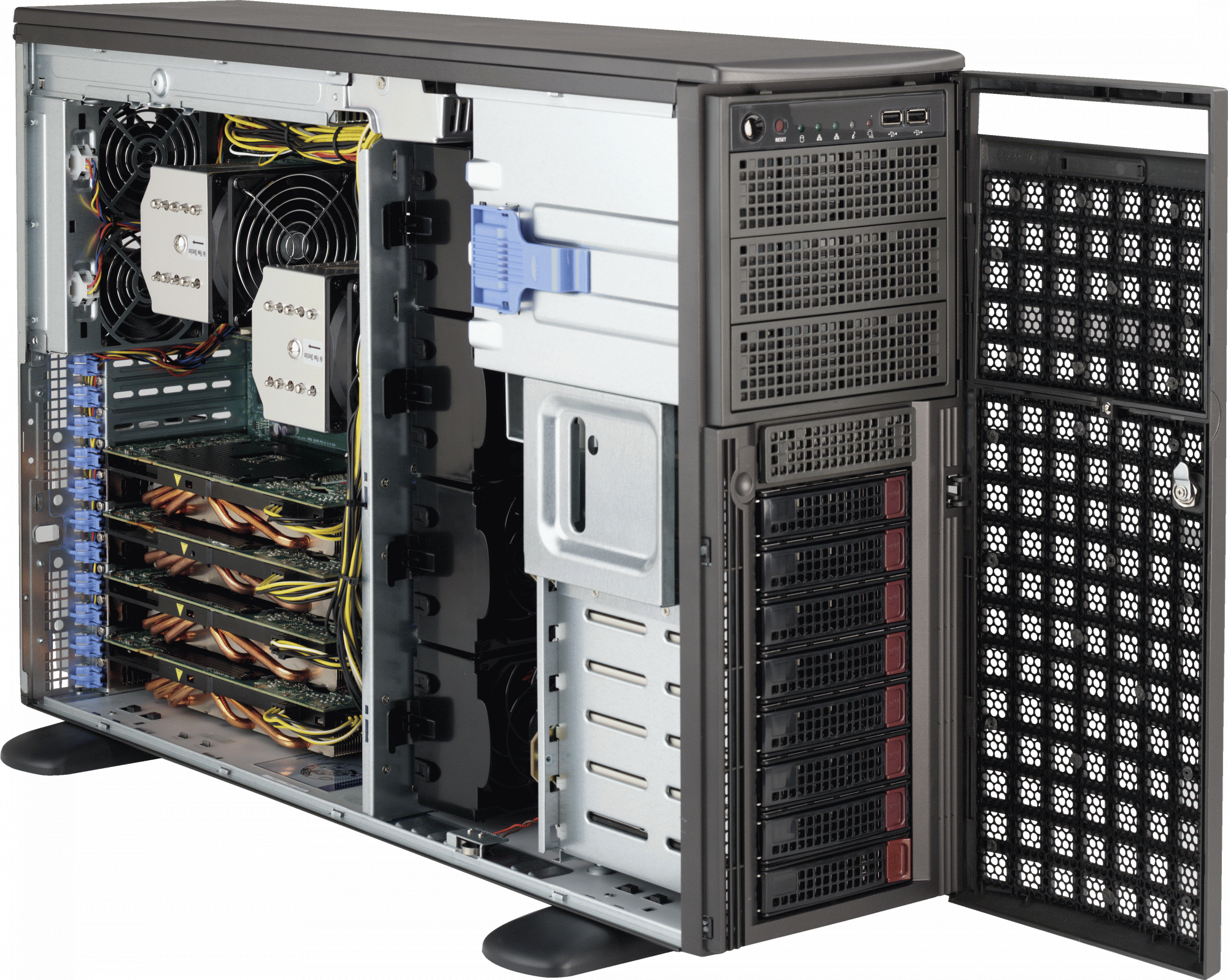

Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed®

4x NVIDIA Tesla M2090 Fermi GPU cards already installed

  • Intel Xeon processor E5-2600 family; QPI up to 8GT/s
  • Up to 512GB DDR3 1600MHz ECC Registered DIMM; 16x DIMM sockets
  • Expansion slots: 4 PCI-E 3.0 x16 (4x double-width GPU cards), 2 PCI-E 3.0 x8 (1 in x16), 1 PCI-E 2.0 x4 (in x8)
  • I/O ports: 1 VGA, 2 COM, 2 GbE, 10 USB 2.0, & 1 IPMI Dedicated LAN
  • 8x Hot-swap 3.5", 3x Fixed 5.25" and 1x Fixed 3.5" Drive Bays
  • 4x Heavy Duty Fans, 4x Exhaust Fans, and 2x Active Heatsink with Optimal Fan Speed Control
  • 1620W Redundant Power Supplies 80 PLUS, Platinum Level (94%)
  • Tower or Rackmount

Configure From $13,232.45  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.


Product SKUs
SYS-7047GR-TPRF-FM409
  • SuperServer 7047GR-TPRF-FM409 (Black)

Motherboard

Super X9DRG-QF

Processor/Cache
CPU
  • Intel Xeon processor E5-2600 (up to 150W TDP)
  • Dual Socket R (LGA 2011)
Cache
  • Up to 20MB
System Bus
  • QPI up to 8 GT/s
GPU
  • supports M2090, up to 150W CPU at 30°C

System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
GPU
  • 4x NVIDIA Tesla M2090 Fermi GPU cards
Chipset
  • Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
     SATA 3.0 6Gbps with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Video
  • Matrox G200eW

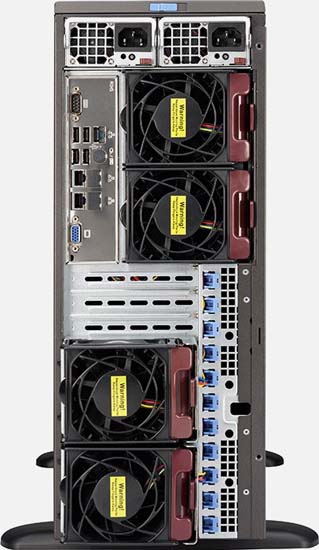

Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 9x USB 2.0 ports total
    (4x rear + 4x via header + 1x Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 (double-width)
  • 2 PCI-E 3.0 x8 (1 in x16 slot)
  • 1 PCI-E 2.0 x4 (in x8)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model
  • CSE-747BTQ-R1K62B

Dimensions
Height
  • 18.2" (462mm)
Width
  • 7.0" (178mm)
Depth
  • 26.5" (673mm)
Gross Weight
  • 62 lbs (28.1kg)
Available Colors
  • Dark Gray

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat & Power Fail LED
Ports
  • 2x Front USB 2.0 Ports

Drive Bays
Hot-swap
  • 8x Hot-swap 3.5" SAS/SATA Drive Trays
Peripheral Bay(s)
  • 3x 5.25" drive bays in storage module - rotates 90° for Rackmount
  • 1x 3.5" fixed drive bay

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans
  • 4x 92x38mm 4-pin PWM Middle Cooling Fans
  • 4x 80x38mm 4-pin PWM Rear Exhaust Fans

Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input
  • 1000W Output @ 100-120V, 12-10A, 50-60Hz
  • 1200W Output @ 120-140V, 12-10A, 50-60Hz
  • 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output
  • 1000W: +12V/84A; +5Vsb/4A
  • 1200W: +12V/100A; +5Vsb/4A
  • 1620W: +12V/150A; +5Vsb/4A
Certification   80PLUS
  Platinum Certified



PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Total of eight fan headers supporting up to 8 fans
  • 8x fans with tachometer status monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x fan connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 2x E5 2600 range of processors, the Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 1600MHZ DDR3 memory sockets .

The Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed supports the Xeon E5 2600 Series Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed

--split--

boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro GPU SuperWorkstation 7047GR-TPRF-FM409 | 4x NVIDIA Tesla M2090 Fermi GPU cards already installed Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: E5 2600
  • Range: GPU Servers GPU Servers and Workstations
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 512GB
  • --split--
