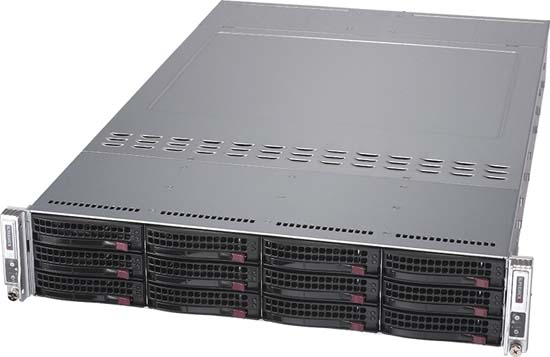

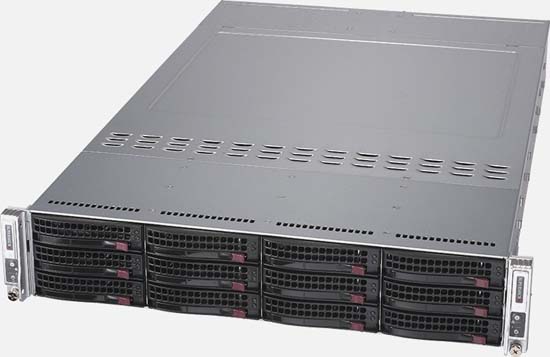

Supermicro 6029TR-DTR SuperServer SYS-6029TR-DTR

Two Nodes in 2U - 2 PCI-E 3.0 x8 (FH/HL), Dedicated IPMI 2.0 LAN, 6x Hot-swap 3.5" SATA3 Drive Bays, Redundant Power Option. Optimised for HPC, Data Centres and Virtualisation.

  • Ideal for - HPC - Virtualisation - Data Centre - Web Server

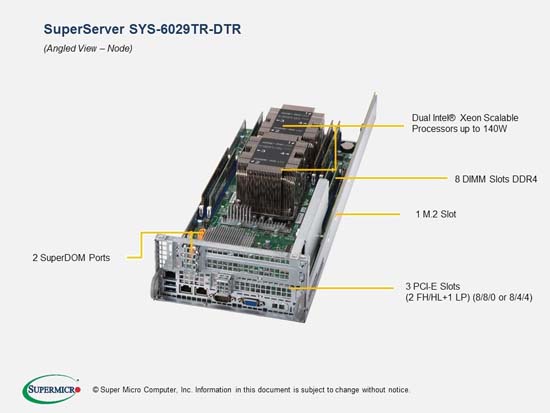

  • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • 2 PCI-E 3.0 x8 (FH/HL) or 1 PCI-E 3.0 x8 (FH/HL) + 1 PCI-E 3.0 x4 (FH/HL) + 1 PCI-E 3.0 x 4 (LP) (8/8/0 or 8/4/4)
  • Dedicated IPMI 2.0 LAN
  • 6 Hot-swap 3.5" SATA3 drive bays
  • 2 SATA DOM + 1 SATA/NVMe M.2 (22110/2280)
  • Up to 1200W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

2U Twin - 2 Servers in 2U

This 2U Twin delivers an innovative architecture where devices can be hot-swapped to allow for easier maintenance, to reduce/eliminate down time and to save space and energy.

Configure With Hot-Swap Drives

The Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Featuring Intel C621 chipset

This server features a Intel C621 chipset which delivers high performance. With this system you are free from vendor lock-in, and it features wide ranging hardware and software compatibility.


A 2U Supermicro SuperServer based on 4x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 3200Mhz DDR4 memory sockets .

The Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SYS-6029TR-DTR SuperServer | 6029TR-DTR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers: 2U Twin - 2 Servers in 2U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
