Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF®

Configure a Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF

  • Two systems (nodes) in a 1U form factor. Each node supports the following:
  • Dual Intel Xeon processor E5-2600 family; QPI up to 8GT/s
  • Up to 256GB DDR3 1600MHz ECC Registered DIMM; 8x DIMM sockets
  • 1x Low-profile PCI-E 3.0 x16 slot
  • I/O ports: 1 VGA, 1 COM, 2 GbE LAN, 2 USB 2.0 ports, 1 dedicated LAN for system management, 1 InfiniBand port with ConnectX-3 FDR speed
  • 2x 3.5" Hot-swap SATA3 HDD Bays
  • 1280W Digital Switching Power Supply 80PLUS, Platinum Level (95%)


This system cannot currently be configured due to supply issues.

Please call us on 1 800 496 9918 to discuss

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

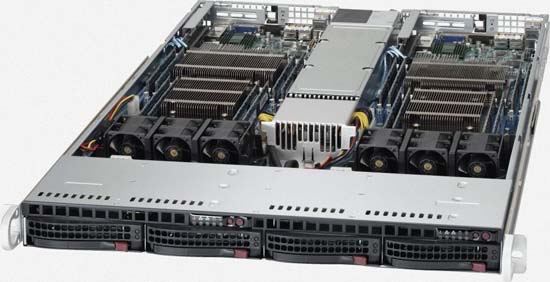

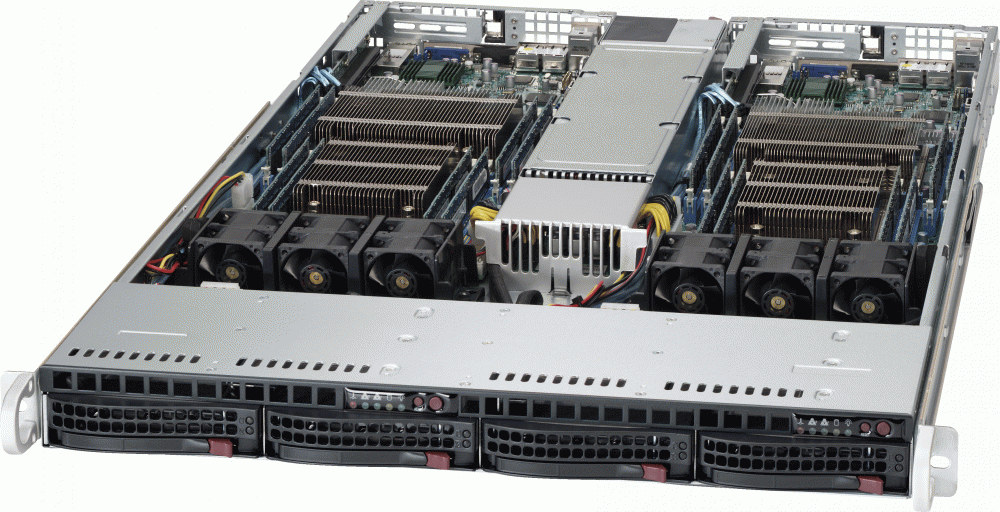

1U Twin - 2 Servers in 1U

This server was designed to increase computing density while reducing cost, as well space and energy requirements. This 1U Twin supports Intel Xeon Scalable processors.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated 56Gbps Infiniband

The Integrated 56Gbps Infiniband network adapter. This network adapter delivers very high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


A 1U Supermicro SuperServer based on 4x Intel E5 2600 range of processors, the Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 1600MHZ DDR3 memory sockets .

The Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF supports the Intel Intel Xeon E5 2600 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6017TR-TFF | SYS-6017TR-TFF Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600
  • Range: Supermicro Twin Servers
  • High-Density Twin Servers: 1U Twin - 2 Servers in 1U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 512GB
