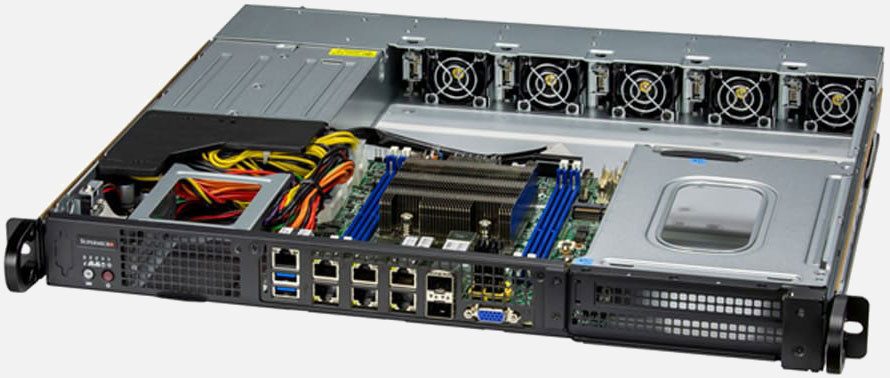

Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP ®

Configure a Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP

  • Key Applications : Networking Application, Firewall, uCPE, Telecom Application
  • Intel® Xeon® Processor D-2712T, CPU TDP 65W
  • Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots

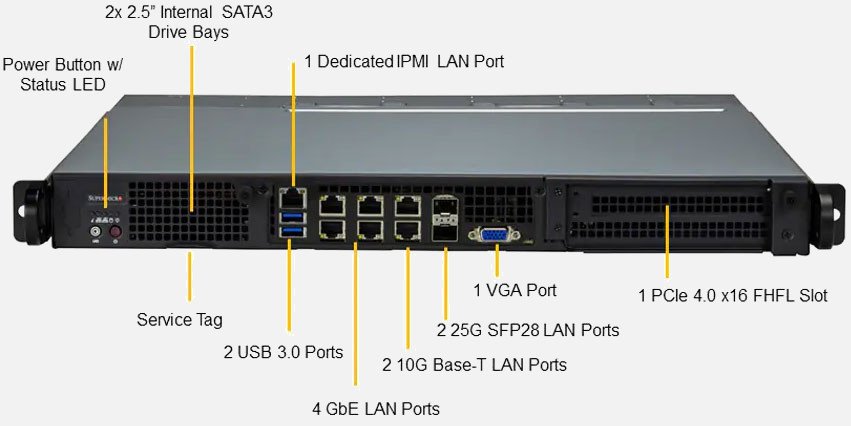

  • 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
  • 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
  • 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
  • 5x 40x56mm Hot-swap Counter-rotation PWM Fans
  • Redundant 800 W, 100-240 Vac



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Rigorously Tested

It is vital that these servers thrive in extreme operating conditions to meet application needs. All Broadberry systems go through rigorous testing to ensure they are of the highest quality.

Configure With Up to 128GB of RAM

Equipable with up to 128GB of RAM, this system optimised for light to mid level processing and offers a superb performance to cost ratio.

Optimised For Virtualisation

Designed to excel at virtualisation. You can use virtual machines for testing, to save physical space, to reduce costs, for hardware for increased compatibility and more.


A 1U Supermicro SuperServer based on 0x Intel Atom range of processors, the Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP is configurable with up to 2x drive bays, and designed for optimal performance with 4x 2400MHz, 2666MHz, 2933MHz, 3200Mhz DDR4 memory sockets .

The Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP supports the family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro IoT SuperServer 110D-4C-FRAN8TP | SYS-110D-4C-FRAN8TP Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Atom
  • Range: Virtualisation Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays:
  • HDD Size:
  • Maximum RAM Capacity: 512GB
