GPU Computing 2U Supercomputer, 4x Tesla, AMD or GTX-Titan GPU Cards
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
Ready for the most demanding enterprise applications, the Broadberry Broadberry ESC4000 G4 GPU Server can be configured with up to 16 DDR4 ECC Registered memory modules.
The Broadberry ESC4000 G4 GPU Server is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.
Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series
Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.
The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.
All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.

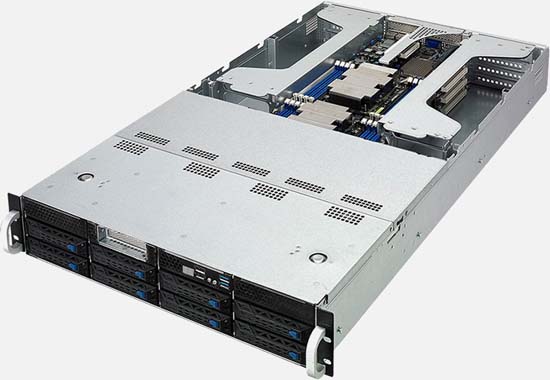

The Broadberry ESC4000 G4 GPU Server is a 2U rackmount server configurable with 2x Xeon Scalable Processor - Dual Socket series range of processors. Built using the latest enterprise-class server technology, the Broadberry ESC4000 G4 GPU Server has 8x SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 16x DDR4 ECC Registered memory banks providing up to 2TB of high-performance server memory. The Broadberry ESC4000 G4 GPU Server boasts High RAM Capacity, Extra Expansion Slots, Full Height/Length Expansion and Redundant Power Supply Option as just a few of its core features.The added benefit of hot-swap hard drives means that the Broadberry ESC4000 G4 GPU Server can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. Our rackmount servers with a high RAM / memory capacity are purpose built for RAM intensive applications such as virtualisation. Servers with extra expansion slots allow for future expandability or use in applications which require a large amount of PCI cards. This machine caters for full-height / full length PCI cards.

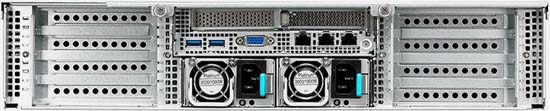

The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.
CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.
With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.

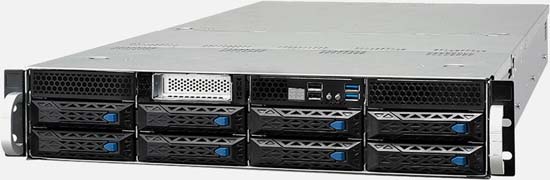

The Broadberry ESC4000 G4 GPU Server supports 8x desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.The added benefit of hot-swap hard drives means that the Broadberry ESC4000 G4 GPU Server can have any of its 8 hot-swap hard drives removed during
Configure for your Network
The Broadberry ESC4000 G4 GPU Serverâ€™s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the Broadberry ESC4000 G4 GPU Server to match your application I/O demands and network infrastructure with up to 2x Gigabit Ethernet Adapters , Intel 10GbE Ethernet Adapters , Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel 40GbE Ethernet Adapters , Mellanox High Performance Network Interface Cards.
Whether your application demands the highest networking throughput, or youâ€™re looking for a more modest enterprise-grade networking option such as Gb/E, the Broadberry ESC4000 G4 GPU Server is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the Broadberry ESC4000 G4 GPU Server at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the Broadberry ESC4000 G4 GPU Server components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The Broadberry ESC4000 G4 GPU Server IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the Broadberry ESC4000 G4 GPU Server with up to 2x Gigabit Ethernet Adapters , Intel 10GbE Ethernet Adapters , Fibre Channel Adaptors, Solid State NVME PCI-Express Drives, Intel 40GbE Ethernet Adapters , Mellanox High Performance Network Interface Cards. With a wide range of enterprise-class PCI-Express add-on options available, the Broadberry ESC4000 G4 GPU Server is a flexible platform for a wide-range of applications.The added benefit of hot-swap hard drives means that the Broadberry ESC4000 G4 GPU Server can have any of its 8 hot-swap hard drives removed during maintenance whilst the system is running completely
We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".
The Broadberry CyberServe SP® range of rackmount server solutions based on dual Intel Xeon® Scalable Processors boast up to 2 processors per server, that's 56 cores, 112 threads and 96 lanes of PCIe. These enterprise-class servers are great for a massive range of applications from business servers to the most demanding processor and RAM intensive applications such as database management and analytics, cloud environments and virtualised infrastructure.
Based on the Intel Xeon Processor Scalable family and configurable with up to 768GB of DDR4 RAM and 28 high-performance processing cores per CPU, Broadberry CyberServe SP® range of server solutions are ideal for these applications:
The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.
Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers.
Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations.
Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads.
Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies.
|up to 8 Cores||up to 12 Cores||up to 22 Cores||up to 28 Cores|
|up to 2 Sockets||up to 2 Sockets||up to 4 Sockets||up to 8+ Sockets|
|up to 1.5TB||up to 1.5TB||up to 6TB||up to 12TB|
The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.
Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.
This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.
|Intel Xeon Processor E5-2600 v4||Intel Xeon Scalable Processor|
|Cores Per Socket||Up to 22||Up to 28|
|Threads Per Socket||Up to 44 threads||Up to 56 threads|
|Last-level Cache (LLC)||Up to 55 MB||Up to 38.5 MB (non-inclusive)|
|QPI/UPI Speed (GT/s)||2x QPI channels @ 9.6 GT/s||Up to 3x UPI @ 10.4 GT/s|
|PCIe* Lanes /Controllers /Speed(GT/s)||40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s)||48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)|
|Memory Population||4 channels of up to 3 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|6 channels of up to 2 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|Max Memory Speed||Up to 2400||Up to 2666|
NVIDIA P100 PCIe
NVIDIA V100 PCIe
NVIDIA Titan V
|Frequency||1,303 MHz||1,126 MHz||1.53 GHz||850 MHz|
|Cache||3 MB L2||4 MB L2||6 MB L2||4.5 MB L2|
|Max. Memory||24 GB||16 GB||16 GB||12 GB|
|Memory B/W||346 GB/s||720 GB/s||900 GB/s||652 GB/s|
