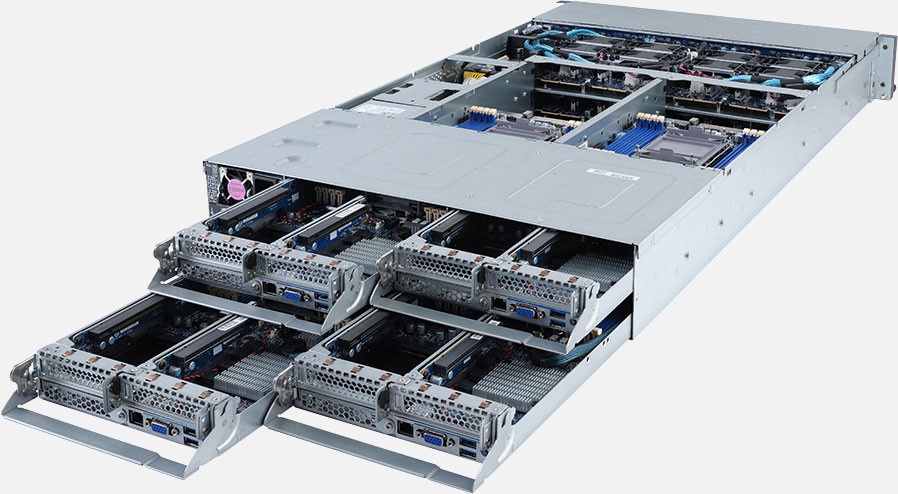

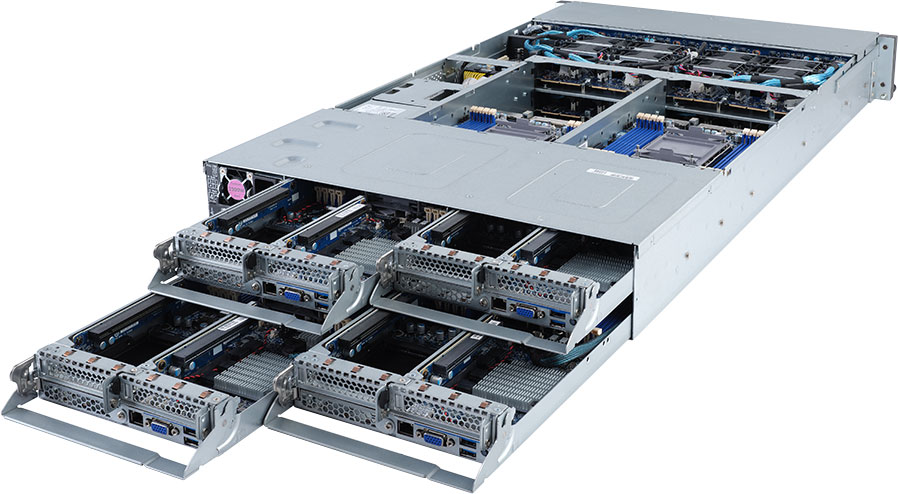

Gigabyte H262-NO1 (6NH262NO1MR-00)®

Quad Node, Dual 3rd Gen Intel® Xeon® Scalable Processors, 2U 4 Node System, 8x PCIe Gen4 expansion slots, 2200W redundant power supply, 24x 2.5" NVMe/SATA Hot swap drive bays (6x Per Node).

  • Key Applications : Hyper Converged Server & Hybrid/Private Cloud Server
  • 2U 4-node rear access server system
  • 3rd Gen Intel® Xeon® Scalable Processors
  • Dual processor per node, 10nm technology
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 64x DIMMs
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture
  • Intel® C621A Chipset
  • 4x Dedicated management ports
  • 1x CMC port
  • 24x 2.5" Gen4 NVMe/SATA hot-swappable bays
  • 8x LP PCIe Gen4 x16 slots
  • 4x OCP 3.0 Gen4 x16 slots
  • 2200W 80 PLUS Platinum redundant power supply



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Powered by dual processors, this system experiences boosts to its performance for multi-threaded programs, allowing for great performance for even the most CPU intensive applications.

Configure With Up to 8TB of RAM

Equip with up to an gigantic 8TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Redundant Power Supply

Featuring a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure with Hot-Swap Drives

The Gigabyte H262-NO1 (6NH262NO1MR-00) can be configured with hot-swap drives, allowing you to remove and replace the drives whilst the system is running with no interruption.

Featuring SATA Support

This server supports SATA drives, which are very cost-effective and adept at dealing with mass storage.

Featuring SAS Support

SAS drives deliver a speed boost over SATA and are often used when speed, reliability and availability are key.

Features NVME Support

This system can be configured with NVMe drives, which are capable of significantly better performance than SATA and SAS.
