TYAN Transport SX TS70-B8056 (B8056T70V8E6HR)®

2U1S Storage Server, hybrid NVMe/SAS/SATA BP, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 12x SATA/4x NVMe Hybrid hot swap drive bays, 12000W Redundant power supply.

  • 1S AMD EPYC™ 9004 Series Processor (AMD Genoa)
  • 24x DIMM slots w/ DDR5 4800 memory support

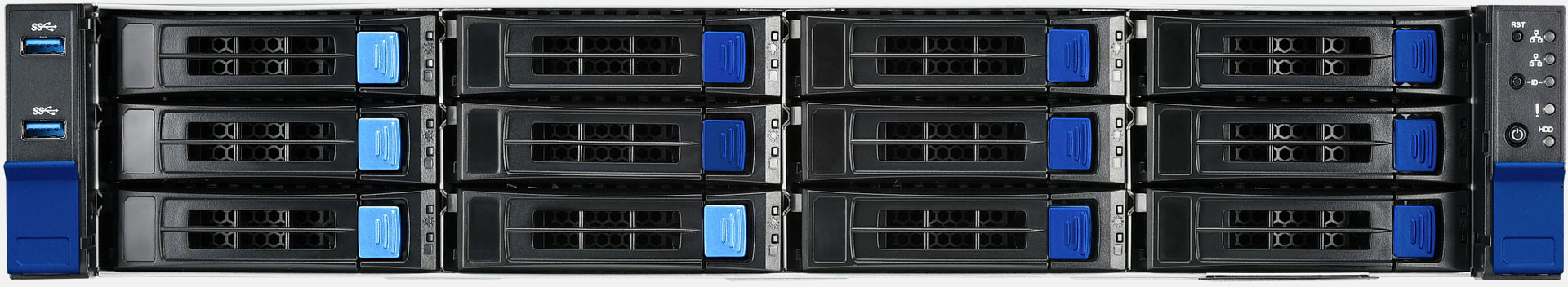

  • 12x 3.5" SATA w/ 4 opt. NVMe U.2 hot swap, tool less drive bays

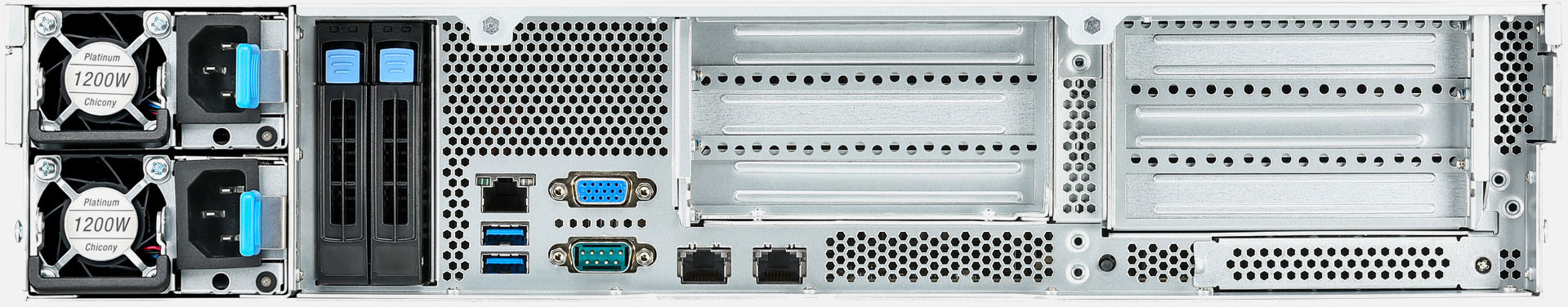

  • 2x 2.5" NVMe U.2 hot swap, tool less drive bays @ rear
  • 2x Full Height/Half Length PCIe 5.0 x16 + 1 Full Height/Half Length PCIe 5.0 x8 slots
  • PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
  • 1Gbe Base-T dedicated IPMI port
  • AST2600 BMC with IPMI 2.0 & Redfish support



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Tyan Server - Trusted Platforms

Tyan servers are configured to be scalable, highly-integrated, reliable, feature high performance and are ideal for a business environment.

Configure With Up to 3TB of RAM

The TYAN Transport SX TS70-B8056 (B8056T70V8E6HR) can be configured with up to 3TB of RAM.

Configure With Hot-Swap Drives

This server solution can be configured with hot-swap drives, allowing you to remove and replace the drives whilst the system is running with no interruption.

Configure With 3.5" Drives

This server solution can be configured with 3.5" drives, which generally provide larger storage capacity than 2.5" drives.

SATA Drive Support

This server supports SATA drives, which are very cost-effective and adept at dealing with mass storage.

SAS Drive Support

SAS drives deliver a speed boost over SATA and are often used when speed, reliability and availability are key.

NVMe Drive Support

NVMe is optimised for high performance which complements PCIe technology. It is the ideal choice if you require a protocol that performs well with high intensity applications and in demanding environments.

3x PCIe Expansion Slots

This server solution features 3x PCIe Expansion Slots
