Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+®

Configure a Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+

  • - Corporate Database - Database Processing & Storage - Enterprise Server - HPC, Data Center - iSCSI SAN
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card

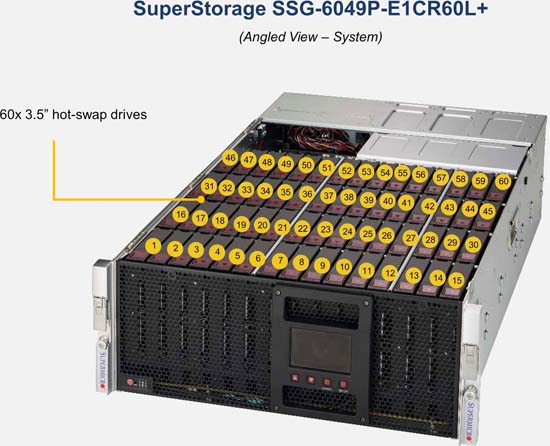

  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays
  • Broadcom 3616, IT mode, x16 SAS
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 2000W Redundant Power Supplies Titanium Level (96%)

Configure From $7,643.75  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 6TB Of RAM

Equipable with up to an huge 6TB of RAM, which allows for quick and effective multi-tasking for even the most RAM intensive applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Configure With Hot-Swap Drives

The Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Features SIOM Network Card

This server features a SIOM network card. This network card delivers high performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SSG-6049P-E1CR60L+
  • SuperServer 6049P-E1CR60L+ (Black)
Motherboard

Super X11DSC+
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel Optane DCPMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3616 AOC; IT Mode, x16 SAS Controller
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output
Serial ATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA D-Sub connector port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946STS-R2K05P
Dimensions
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 30.2" (767mm)
Package
  • 33.25" (W) x 28" (H) x 42.5" (D)
Weight
  • Gross Weight: 172.5 lbs (78.24kg)
  • Net Weight: 120 lbs (54.43 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slot
  • 1 SIOM card support
    (must bundle with network card)
Drive Bays
Hot-swap

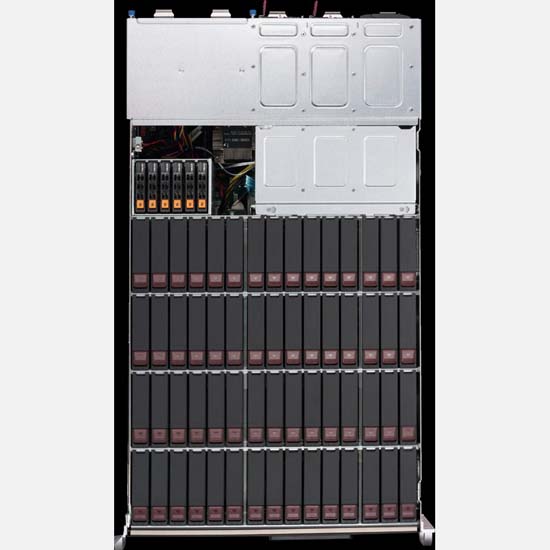

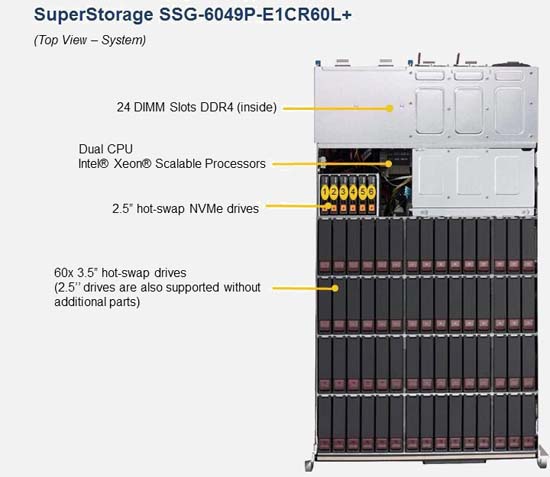

  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays
  • 2 Rear Hot-swap 2.5" SATA drive bays
Backplane
SAS3/SATA3 single expander per backplane
System Cooling
Fans
  • 5 Hot-swap 8cm rear exhaust PWM fans
Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 4U Supermicro SuperServer based on 2x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ is configurable with up to 60x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ supports the Intel Intel Xeon Scalable Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperStorage 6049P-E1CR60L+ | SSG-6049P-E1CR60L+ Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 3.1TB
