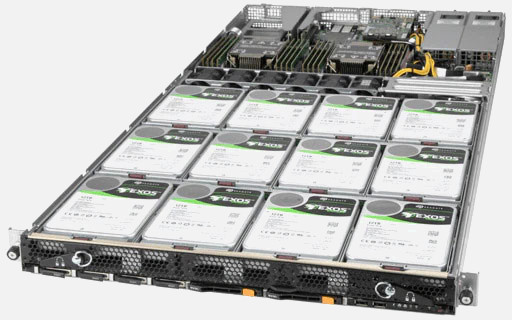

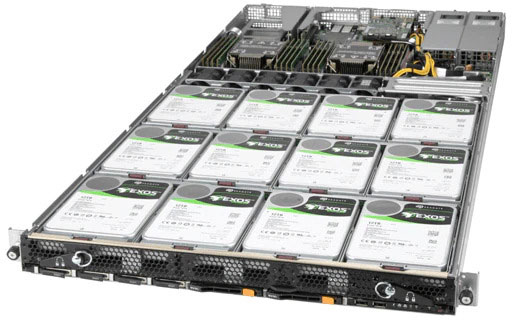

Supermicro Storage SuperServer SSG-610P-ACR12N4L SSG-610P-ACR12N4L

Optimised for database applications, hyperscale data centre, and big data analytics. 2x 25G SFP+ Ports Onboard. 2x PCI-E 4.0 x16 LP expansion slots.

  • Key Applications - Database Applications, Hyperscale Data Center, Object Storage, Big Data Analytics, Scale-Out Density, Hadoop & Ceph storage solutions, Scale-out NAS
  • Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM
  • 2x 25G SFP+ Ports Onboard

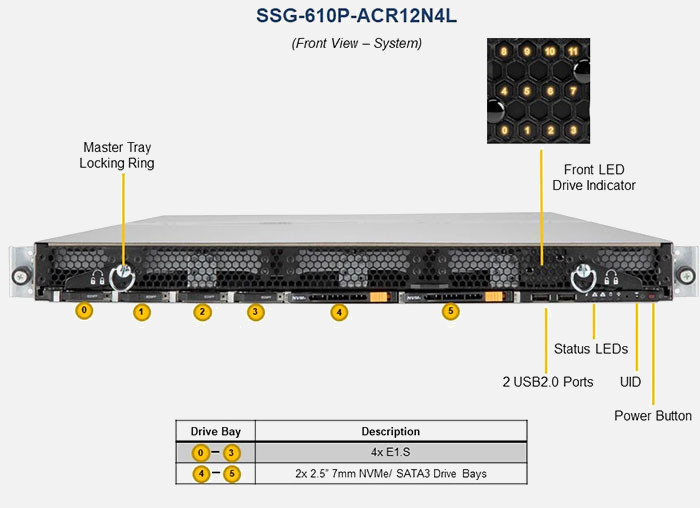

  • 12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
  • 4x E1.S (EDSFF Short) NVMe drives
  • Host Bus Adapter via Broadcom® 3224
  • PCI-E 4.0 x16 AIOM Support + 3 PCI-E 4.0 LP Slots



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

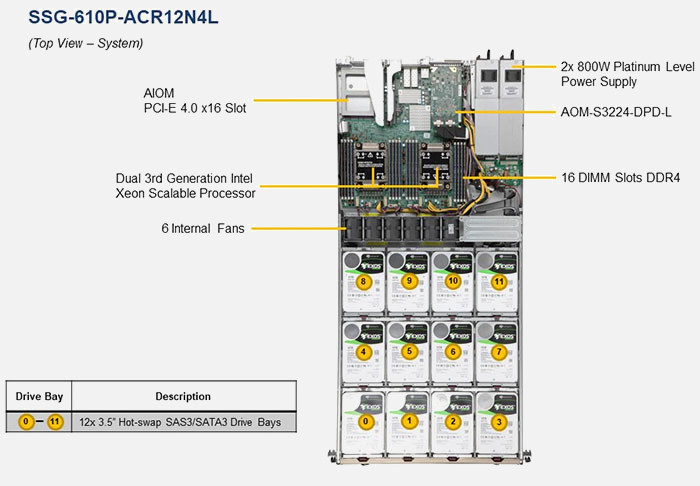

A 1U Supermicro SuperServer based on 2x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L is configurable with up to 14x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 3200Mhz DDR4 memory sockets .

The Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro Storage SuperServer SSG-610P-ACR12N4L | SSG-610P-ACR12N4L Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
