Supermicro Hyper SuperServer SYS-120H-TNR SYS-120H-TNR

Configure Supermicro Hyper SuperServer SYS-120H-TNR. Ideal for virtualisation, software-defined storage and cloud computing. Features Intel Optane Persistent Memory 200 series.

  • Key Applications - Virtualisation, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • 32 DIMM Slots;
  • Up to 8TB DRAM;
  • Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
  • 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  • Intel® Optane™ Persistent Memory 200 series
  • 3 PCI-E 4.0 x16 slots with support for GPU/Accelerator cards
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)

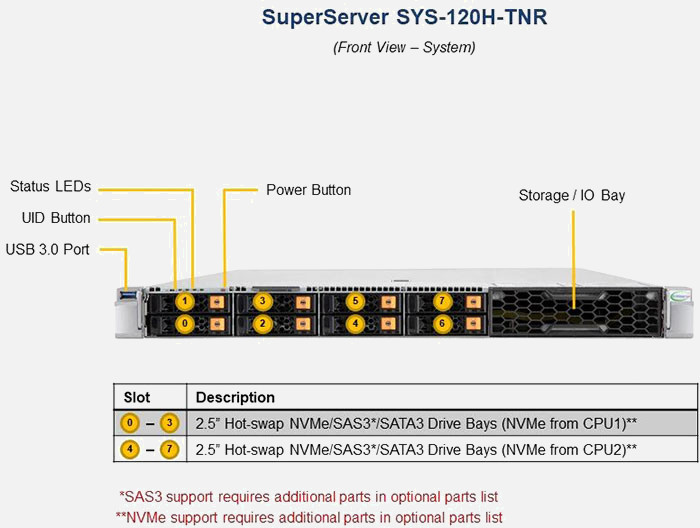

  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays;
  • Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays;
  • 2x internal M.2 NVMe/SATA drive slots;
  • Optional RAID support via storage add-on card
  • 8 heavy duty hot-swap fans with optimal fan speed control


This system cannot currently be configured due to supply issues.

Please call us on 1 800 496 9918 to discuss

Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 8TB of RAM

Equip with up to a massive 12TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Configure With Hot-Swap Drives

The Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

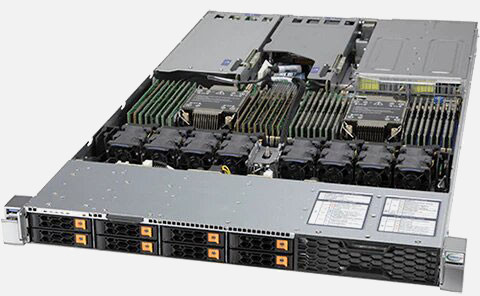

A 1U Supermicro SuperServer based on 2x Intel 3rd Gen Intel Xeon Scalable Processors range of processors, the Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 32x 3200Mhz DDR4 memory sockets .

The Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro Hyper SuperServer SYS-120H-TNR | SYS-120H-TNR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processors
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 4.1TB
