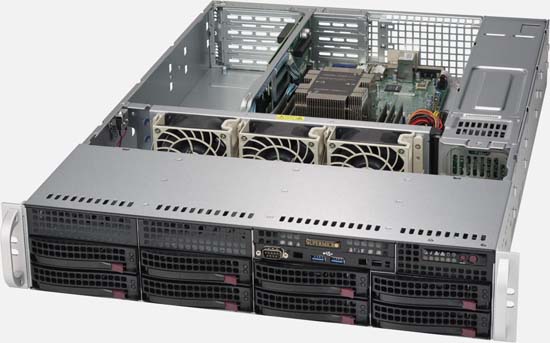

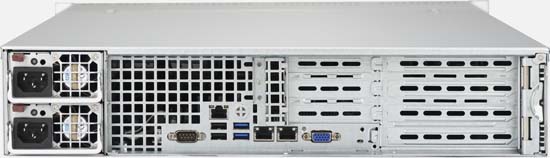

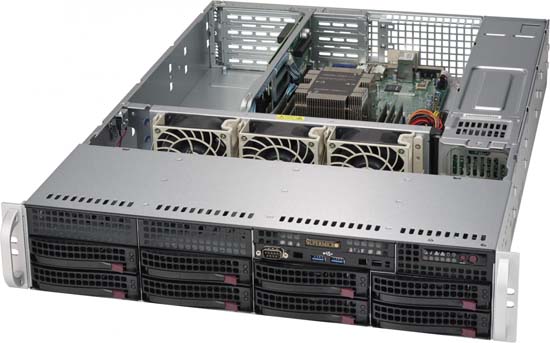

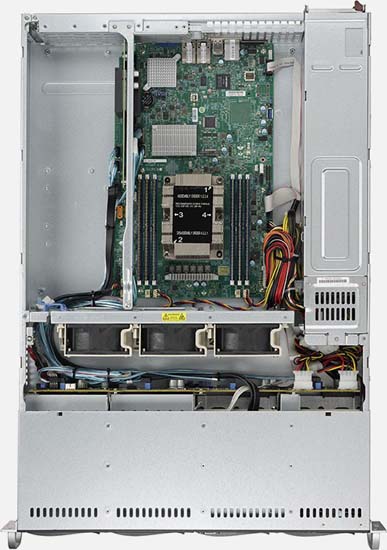

Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR®

The Supermicro SYS-5029P-WTR, powered by can be configured with hot-swappable 3.5” drive bays and 1.5TB maximum RAM capacity.

  • DB Processing & Storage
  • Connectivity/Storage Computer Nodes
  • Data Warehouse
  • Single Socket P (LGA 3647) supports 2nd Gen. Intel Xeon Scalable processor (Cascade Lake/Skylake)‡
  • 6 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 8 Hot-swap 3.5" SATA3 drive bays
  • 2x 10GBase-T ports with Intel X772 + X557
  • 1 VGA, 2 COM, 2 USB 3.0, 2 USB 2.0
  • 2 SuperDOM (Disk on Module) ports
  • 500W Redundant Platinum Level power supplies

Configure From $1,561.90  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Single Processor

Designed for server applications where multi processors are not required. Single processors are an affordable, cost-effective and reliable option.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Designed For High Capacity

Designed and optimised for storage, this server is built for high storage capacity. It also features enterprise grade reliability and is ideal if you require a lot of storage space.

Configure With Hot-Swap Drives

The Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Dual 10GBase-T LAN ports via Intel X722

Featuring a Dual 10GBase-T LAN network adapter, which delivers high performance. This server is not vendor locked and features wide ranging hardware compatibility.


The Supermicro SYS-5029P-WTR is built for high capacity and in addition to featuring enterprise grade reliability and is an ideal option if you require a lot of storage space. This system is powered by a single Intel Xeon Scalable processor, which features a large number of enhancements over the previous generation of Xeon processors. Security without compromise combines a number of security technologies that help to protect your server.

Product SKUs
SYS-5029P-WTR
  • SuperServer 5029P-WTR (Black)
Motherboard

Super X11SPW-TF
Processor/Cache
CPU
  • Single Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake)
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores with Intel HT Technology
Note BIOS version 3.0b or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel C622 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN with Intel X772 + X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 2 COM ports (1 rear, 1 header)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825TQC-R500WB
Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 25.6" (650mm)
Package
  • 26.5" (W) x 11" (H) x 34" (L)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 34 lbs (15.42 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Information LED (temp., status)
Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x8 (FHFL) slots
  • 1 PCI-E 3.0 x8 (LP) slot
Drive Bays
Hot-swap
  • 8 Hot-swap 3.5" SATA3 drive bays
M.2
  • M.2 Interface: PCI-E 3.0 x4 and SATA
  • Form Factor: 2280, 22110
  • Key: M-Key
  • Double Height Connector
Peripheral Drives
DVD-ROM
  • 1 Slim DVD-ROM drive bay
System Cooling
Fans
  • 3 Hot-swap 8cm PWM cooling fans
Power Supply with Power Distributor
500W high-efficiency redundant power supplies with PMBus
AC Input
  • 100-240 V, 50-60 Hz, 6.1-2.6 Amp
DC Output
  • 4 Amp @ +5V standby
  • 41.7 Amp @ +12V
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 24 Amp
  • -12V: 0.6 Amp
Certification Platinum Certified
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 2U Supermicro SuperServer based on 1x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 6x 2666MHz, 2933MHz DDR4 memory sockets .

The Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR supports the Intel Intel Xeon Scalable Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR boasts 5 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SYS-5029P-WTR SuperServer | 5029P-WTR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Storage Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 768GB
