Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR®

Configure a Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR

  • - HPC - Data Center - Enterprise Server - Finanical Analysis - Mission-critical applications

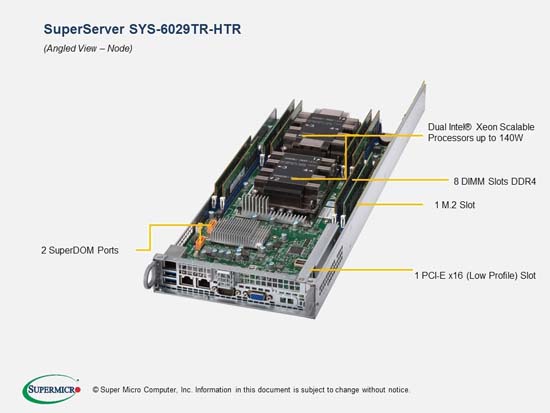

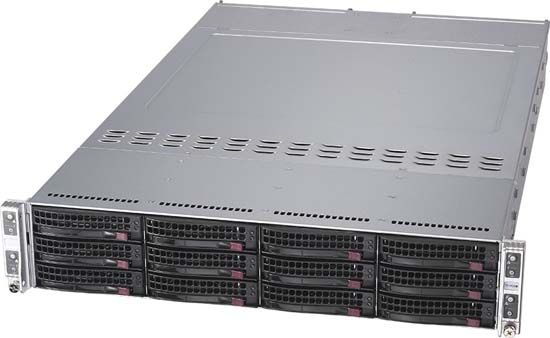

  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • 1 PCI-E 3.0 x16 (LP) slot
  • Dedicated IPMI 2.0 LAN
  • 3 Hot-swap 3.5" SATA3 drive bays
  • 2 SATA DOM + 1 SATA/NVMe M.2 (22110/2280)
  • Up to 1600W Redundant Power Supplies Titanium Level (96%)

Configure From $4,312.44  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Featuring Intel C621 chipset

This server features a Intel C621 chipset which delivers high performance. With this system you are free from vendor lock-in, and it features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-6029TR-HTR
  • SuperServer 6029TR-HTR (Black)
Motherboard (Four per System)

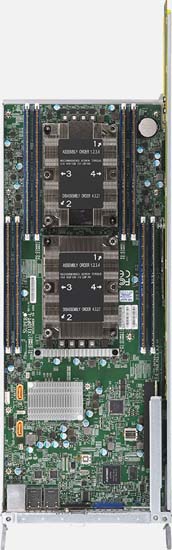

Super X11DPT-L
Processor/Cache (per Node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-140W
Cores
  • Up to 22 Cores with Intel HT Technology
Note BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors
System Memory (per Node)
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
On-Board Devices (per Node)
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5 support
Network Controllers
  • Intel C621 chipset
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output (per Node)
SATA
  • 3 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports total (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 rear)
Others
  • TPM 2.0 Header
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM with UEFI
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ-R1K68BP3
Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.5" (724mm)
Weight
  • Gross Weight: 73.5 lbs (33.34kg)
  • Net Weight: 52.1 lbs (23.63kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 1 PCI-E 3.0 x16 Low-profile slot
Drive Bays / Storage (per Node)
Hot-swap
  • 3 Hot-swap 3.5" SATA3 HDD trays
Others
  • 2 SATA DOM
  • 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL

    * M.2 and SuperDOM are for OS boot
System Cooling
Fans
  • 4x 8cm heavy duty PWM fans with optimal fan speed controlled
Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W/1600W
Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-140Vac / 10-7A / 50-60Hz
  • 180-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 67A / Min: 0A (100-140Vac)
  • Max: 133A / Min: 0A (180-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 2U Supermicro SuperServer based on 8x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 32x 2666MHz DDR4 memory sockets .

The Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR supports the Intel Intel Xeon Scalable Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 4.1TB

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.


How to order

You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".

Supermicro SuperServer 6029TR-DTR | SYS-6029TR-DTR Supermicro SuperServer 6029TR-HTR | SYS-6029TR-HTR
Configure From: $2,664
Configure
Configuring From: $4,312
ChassisSYS-6029TR-DTRSYS-6029TR-HTR
U Size2U2U
Processor FamilyIntel Xeon Scalable ProcessorsIntel Xeon Scalable Processors
High-Density Twin Servers2U Twin - 2 Servers in 2U
Drive BaysHot-Swap DrivesHot-Swap Drives
HDD Size3.5" Drives3.5" Drives
Integrated FeaturesIntel C621 chipsetIntel C621 chipset
CPU SocketsDual ProcessorDual Processor
