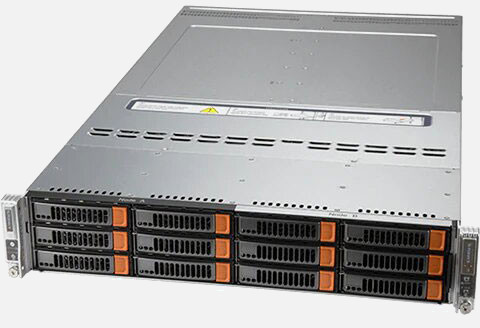

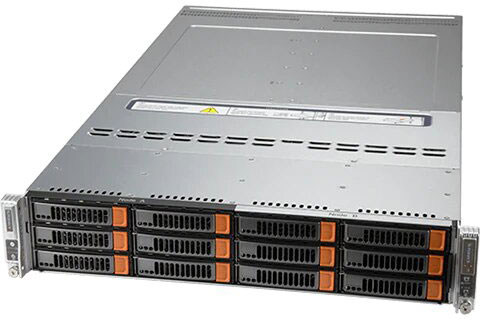

Supermicro BigTwin SuperServer SYS-620BT-DNC8R SYS-620BT-DNC8R

Two hot-pluggable systems (nodes) in a 2U form factor. 2 PCI-E 4.0 x16 (LP) slot. Redundant power supplies. 2 M.2 NVMe/SATA support onboard.

  • Key Applications - Hyperconverged Infrastructure, Scale-Out Object Storage, Back-up & Recovery
  • Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A
  • 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)

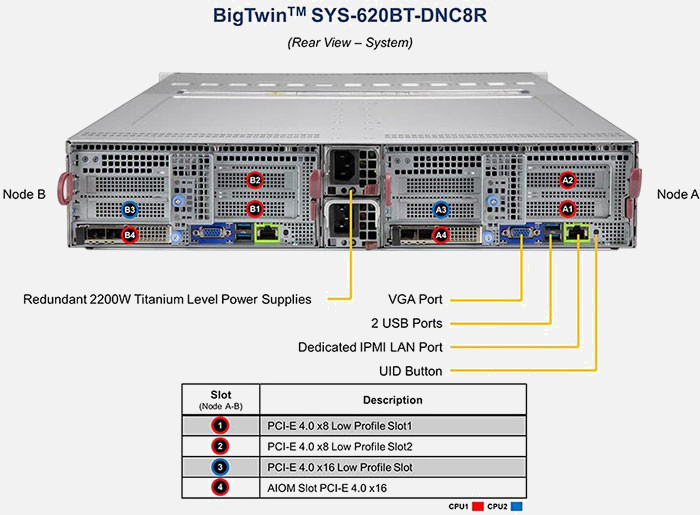

  • 1 PCI-E 4.0 x16 (LP) slot;
  • 2 PCI-E 4.0 x8 (LP) slot;
  • Tool-less support
  • Internal PCI-E 3.0 x8 for 2 M.2 NVMe/SATA support onboard
  • Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network connectivity via AIOM (OCP 3.0 compliant)

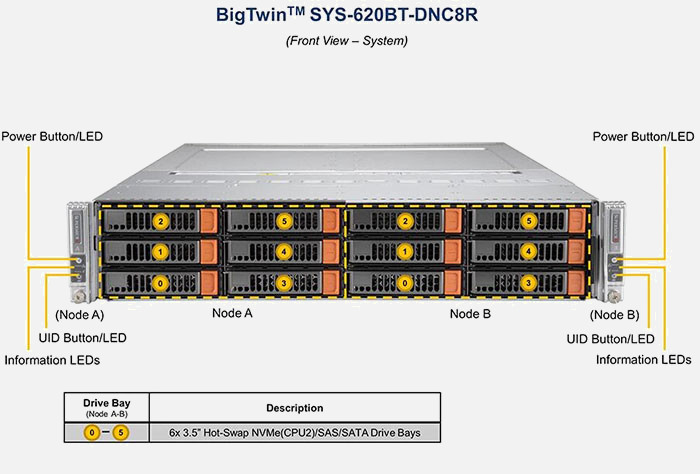

  • 6 Hot-swap 3.5" drive bays; 6 PCI-E 4.0 NVMe/SAS/SATA 3.5" drives
  • 2 cooling fans per node, 14.9K RPM
  • Liquid Cooling Support
  • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Hyperconverged Infrastructure Optimised

Optimised for hyperconverged infrastructure. Through leveraging hyperconverged infrastructure you can enjoy lower costs, increased performance and increased data protection.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


A 2U Supermicro SuperServer based on 4x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 32x 3200Mhz DDR4 memory sockets .

The Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro BigTwin SuperServer SYS-620BT-DNC8R | SYS-620BT-DNC8R Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: Hyperconverged Infrastructure Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 4.1TB
