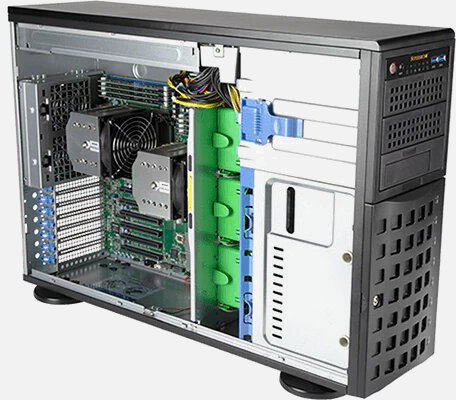

Supermicro Super Workstation SYS-740A-T SYS-740A-T

Optimised for Rendering and Multimedia/Digital Content creation. Supports up to two double width active GPUs. 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8, 2 NVMe M.2 slots.

  • Key Applications - Rendering, CAD, Multimedia/Digital Content creation, Engineering/scientific research
  • 3rd Gen Intel® Xeon® Scalable processor support
  • Intel® C621A Chipset
  • 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8, 2 NVMe M.2 slots
  • 3x 5.25" peripheral drive bays
  • 8x 3.5" hot-swap SATA (default) drive bays (SAS support requires optional add-on card ) up to 4x NVMe SSD support with optional cables
  • Dual 1200W Titanium level power supplies for high powered configurations
  • 1 VGA, 6 USB 3.2 Gen1 (4 Rear, 2 Front), 1 USB 3.2 Gen2 (Rear), 7.1 HD Audio
  • Supports up to two double width active GPUs



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro Super Workstation SYS-740A-T | SYS-740A-T features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro Super Workstation SYS-740A-T | SYS-740A-T with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


A 4U Supermicro SuperServer based on 2x Intel 3rd Gen Intel Xeon Scalable Processor (X12) range of processors, the Supermicro Super Workstation SYS-740A-T | SYS-740A-T is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 3200Mhz DDR4 memory sockets .

The Supermicro Super Workstation SYS-740A-T | SYS-740A-T supports the Intel Intel Xeon Scalable Processors 3rd Generation family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro Super Workstation SYS-740A-T | SYS-740A-T boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

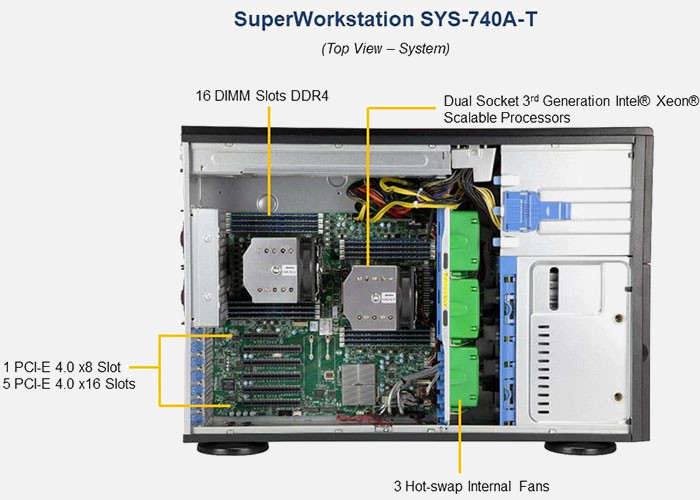

Supermicro Super Workstation SYS-740A-T | SYS-740A-T Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: 3rd Gen Intel Xeon Scalable Processor (X12)
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
