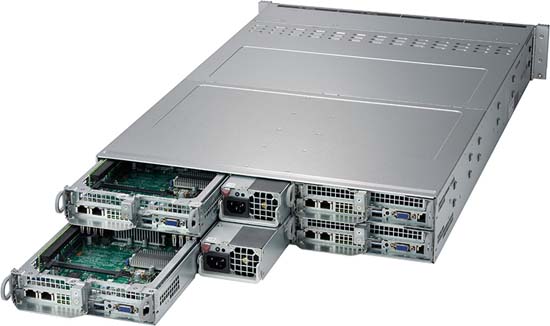

Supermicro 6029TP-HTR SuperServer SYS-6029TP-HTR

Four Nodes in 2U -.2x PCI-E 3.0 x16 (LP) slots, Dedicated IPMI 2.0 LAN, Redundant Power Option. Optimised for Compute Intensive Application, HPC, Enterprise Server.

  • Ideal for - Compute Intensive Application - HPC, Data Center - Enterprise Server - Financial Analysis - Mission-critical applications
  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel Optane™ DCPMM
  • 2 PCI-E 3.0 x16 (LP) slots
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 3 Hot-swap 3.5" SATA3 drive bays
  • Up to 2200W Redundant Power Supplies Titanium Level (96%)



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 4TB Of RAM

Equipable with up to an gigantic 4TB of RAM, which allows for fast and efficient multi-tasking for the most RAM intensive applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

2U Twin - 2 Servers in 2U

This 2U Twin delivers an innovative architecture where devices can be hot-swapped to allow for easier maintenance, to reduce/eliminate down time and to save space and energy.

Configure With Hot-Swap Drives

The Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Features SIOM Network Card

This server features a SIOM network card. This network card delivers high performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


A 2U Supermicro SuperServer based on 8x Intel 2nd Gen Intel Xeon Scalable Processor (X11) range of processors, the Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR is configurable with up to 12x Hot-Swap Drives drive bays, and designed for optimal performance with 64x 3200Mhz DDR4 memory sockets .

The Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR supports the Intel Intel Xeon Scalable Processors 2nd Generation family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR boasts 8 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SYS-6029TP-HTR SuperServer | 6029TP-HTR Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: 2nd Gen Intel Xeon Scalable Processor (X11)
  • Range: HPC Supermicro Twin Servers
  • High-Density Twin Servers: 2U Twin - 2 Servers in 2U
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 8.2TB
