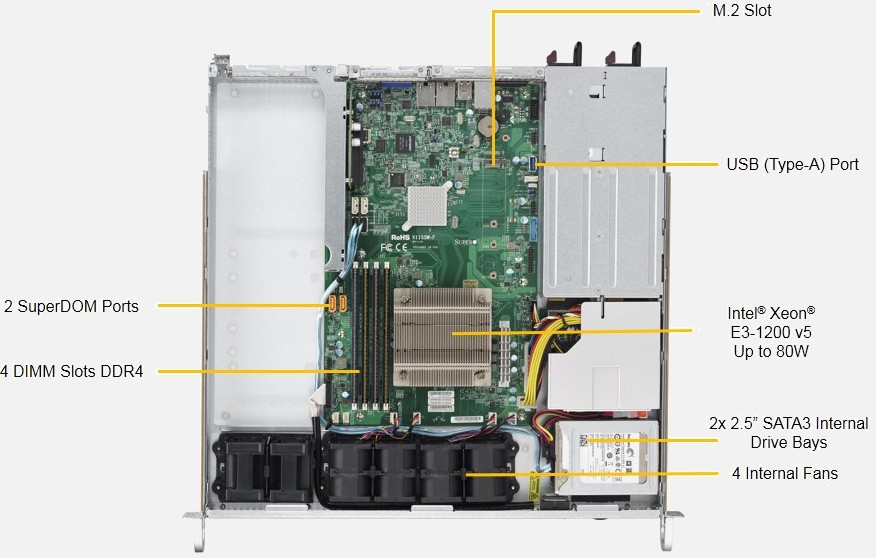

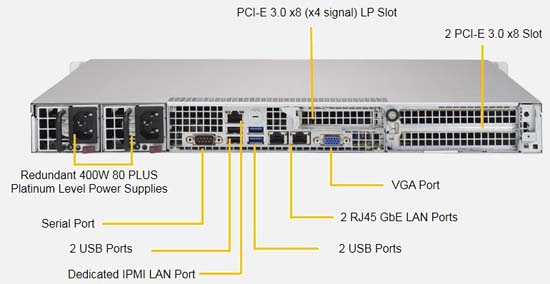

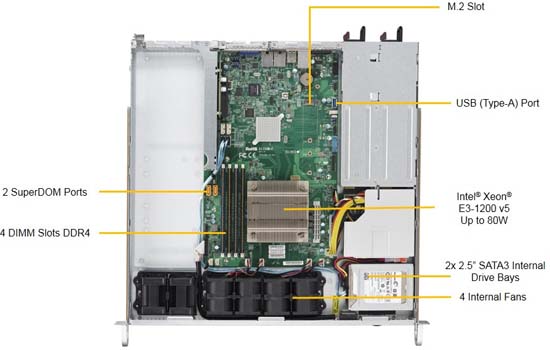

CyberServe Xeon XE3-1019S-WR GPU Server®

Intel Xeon E3 v6 Series Processor, 1U Server, 2x Fixed Drive Bays, Redundant Power Suppy

  • Short Depth = 429mm
  • Perfect for Appliance Server, WIO, Embedded Applications
  • 2x GbE ports with Intel i210-AT, 1x dedicated IPMI port
  • Full-Size PCI-Express Expansion Slot
  • Supports up to 2x SATA3 2.5" Hard Drives
  • Configurable with 1x Intel
  • Supports up to 4 modules of DDR4 ECC Unregistered Memory
  • 1x PCI Express Expansion Slots
  • Configurable with up to 512GB Server Memory

Configure From $1,831.81




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

CyberServe Xeon XE3-1019S-WR GPU Server Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Trusted CyberServe Server Platform

The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.

Ultra Energy-Efficient

The CyberServe Xeon XE3-1019S-WR GPU Server has been designed to keep energy consumption ultra low, reducing TCO over the systems lifetime.

Optional Hot-Swap Power Supply

The CyberServe Xeon XE3-1019S-WR GPU Server is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.

Based on Tesla GPU

GPU SuperComputing servers offer massive processing power and HPC performance, considerably accelerating applications.

Supports SATA Drives

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Small Form Factor Storage

The CyberServe Xeon XE3-1019S-WR GPU Server boasts high density storage and ultimate energy efficiency, catering for up to 2x High-Performance 2.5" SSD or Hard Drives

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure with up to 64GB RAM

Ready for the small business applications, the Broadberry CyberServe XE3 range can be configured with up to 64GB of Error Correcting Code memory.

Single Xeon E3 1200 v6 Processors

Designed for dependability and energy-efficiency, the CyberServe XE3® range of servers support the Intel Xeon® processor E3-1200 v6 family of processors.

Boost Performance by up to 43%

Powered by the latest Intel Xeon E3 1200 v6 family of processors, the Broadberry CyberServe XE3 range boosts performance by up to 43% over previous generation Xeons.

Increased Server Energy Efficiency

The Broadberry CyberServe XE3 1200® range of rackmount servers intelligently deliver significantly lower power consumption, whilst maintaining maximum energy processing performance.

Built with Leading Brand Components

All components in the Broadberry CyberServe XE3® range are sourced from leading manufacturers who take reliability as seriously as we do.

With IPMI Remote Management

All Broadberry CyberServe XE3® rack servers come with iPMI functionality, enabling complete control and management of your server through IP.

Based on DDR4 Memory

The Broadberry CyberServe XE3® range boasts DDR4 memory, up to twice as fast and delivering 50% more bandwidth and 40% more energy efficiency than DDR3.


The CyberServe Xeon XE3-1019S-WR GPU Server is a 1U rackmount server configurable with 1x Xeon E3 v6 Single Processor series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon XE3-1019S-WR GPU Server has 2x 2.5" SATA Fixed Drives and is ideal for those requiring a combination of high performance and density with its 4x DDR4 ECC Unregistered memory banks providing up to 512GB of high-performance server memory. The CyberServe Xeon XE3-1019S-WR GPU Server boasts Ultra Low Power, Full Height/Length Expansion, Redundant Power Supply Option and Short Depth as just a few of its core features.

Perfect Business-Class Servers the CyberServe range based on the Intel Xeon E3-1200 processor family are ideal for value-conscious companies looking for a robust and affordable system used as a entry/mid-level server for light processing tasks. Servers are configurable with up to 32GB DDR3 RAM and 4 processing cores, with a single processor. The CyberServe Xeon XE3-1019S-WR GPU Server rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required. High Efficiency Servers. With data-center running costs constantly rising, it is becoming increasingly more important for rackmount servers to be low-powered and efficient. Broadberry use the latest power-efficient technology with all the components in the CyberServe Xeon XE3-1019S-WR GPU Server, meaning it has been awarded the Broadberry 'Ultra Low Power' rating. This machine caters for full-height / full length PCI cards.

Redundant Power

The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.

CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.

With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.

Short Depth Servers can be less than half the length of standard servers, this allows them to be utilised in situations where space is at a premium, typically situations such as comms racks.

Storage Technology

The CyberServe Xeon XE3-1019S-WR GPU Server supports 2x 2.5" desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.

Originally designed and utilised in mobile applications such as laptops and notebooks, 2.5" hard drives are becoming ever increasingly used in servers due to their lower power consumption and space-saving characteristics. The CyberServe Xeon XE3-1019S-WR GPU Server rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required.

Configure for your Network

The CyberServe Xeon XE3-1019S-WR GPU Server’s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.

Configure the CyberServe Xeon XE3-1019S-WR GPU Server to match your application I/O demands and network infrastructure with up to 1x .

Whether your application demands the highest networking throughput, or you’re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon XE3-1019S-WR GPU Server is totally customisable with a wide range of robust I/O connectivity options.

IPMI 2.0 & KVM over IP

Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon XE3-1019S-WR GPU Server at no extra cost.

Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.

Check the health of the CyberServe Xeon XE3-1019S-WR GPU Server components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.

The CyberServe Xeon XE3-1019S-WR GPU Server IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.

Expand with PCI-Express Expansion

Configure the CyberServe Xeon XE3-1019S-WR GPU Server with up to 1x . With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon XE3-1019S-WR GPU Server is a flexible platform for a wide-range of applications.

The CyberServe Xeon XE3-1019S-WR GPU Server rackmount server with 2 fixed hard drives offers a cheaper alternative to servers with hot-swappable drives, bringing the total system cost down when hot-swappable hard drives are not required.

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.


How to order

You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".


Why Buy Broadberry

Leading Security

We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.

Best Price Guarantee

Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.

Ease of Management

Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.

Customer Service

Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centres!

Trouble-Free Integration

Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.

3-Year Warranty

All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.

Easy Installation

From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!

Standardisation

Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.

Flexibility

Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.

Scalability

Our servers are built to grow with your organization, whether that be by purchasing additional drives, or additional scale-out nodes.

Innovation

Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.

GSA Schedule Holder

We offer rapid GSA scheduling for custom configurations. For specific hardware requirements we can have your configuration posted on the GSA Schedule within 2-4 weeks.


NVIDIA P40
NVIDIA P100 PCIe
NVIDIA V100S
NVIDIA Titan RTX
NVIDIA T4
NVIDIA A100
Architecture Pascal Pascal Volta Turing Turing Ampere
SMs 30 56 80 72 72 108
CUDA Cores 3,840 3,584 5,120 4608 2,560 6,912
Tensor Cores N/A N/A 640 576 320 432
Frequency 1,303 MHz 1,126 MHz 1,267 MHz 1,350 MHz 1,590 MHz -
TFLOPs (double) 367.4 GFLOPS(1:32) 4.7 8.2 - 65 9.7
TFLOPs (single) 12 9.3 16.4 16.3 8.1 19.5
TFLOPs (half/Tensor) 183.7 GFLOPS(1:64) 18.7 130 130 65.13 TFLOPS(8:1) 624
Cache 3 MB L2 4 MB L2 6 MB - 4 MB 40 MB
Max. Memory 24 GB 16 GB 32 GB 24 GB 16 GB 40 GB
Memory B/W 346 GB/s 720 GB/s 1134 GB/s 672 GB/s 350 GB/s 1,555 GB/s
