3 x PCIE Slots (2x FHHL, 1x LP), Redundant Power, Dual Gigabit or 10GbE LAN, Dedicated LAN for IPMI Remote Management & Remote KVM
Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.
The Broadberry range of CyberServe® rackmount are trusted as the server of choice for thousands of companies from SMBs to enterprise's across the globe.
Ready for the most demanding enterprise applications, the Broadberry CyberServe Xeon SP2-104E can be configured with up to 12 DDR4 ECC Registered memory modules.
The CyberServe Xeon SP2-104E has 3 PCI-Express expansion slots allowing for plenty of future expandibility
The CyberServe Xeon SP2-104E is configurable with a hot-swap redundant power supply, meaning minimal down-time for mission critical applications.
This system can be configured with SATA drives for cost-effective 12gb/s storage.
Designed for the most demanding tasks, the dual socket range of CyberServe Xeon SP® servers support the latest Intel Xeon® processor Scalable series
Powered by the revolutionary Intel Xeon SP processor range, CyberServe Xeon SP servers deliver massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.
The Broadberry CyberServe Xeon SP® range has been built from the ground up for private / hybrid cloud environments, clustering, virtualised infrastructure and database management.
The Broadberry CyberServe Xeon SP® range has a completely redesigned QPI system, producing up to 21% improvement in data efficiency as well as a 50% reduction in idle power.
All Broadberry CyberServe Xeon SP® rack servers are compatible with iPMI functionality, enabling complete control and management of your server through IP.
Boasting Intel Integrated I/0 on the processor, Broadberry CyberServe Xeon SP® servers accelerate data availability to the processing cores, reducing latency by up to 30%.
Intel Advanced Vector Extensions 512, the latest x86 vector instruction set with up to two fused-multiply add units and other optimisations, accelerates performance for the most demanding computational tasks.
Improving performance across applications and platforms, Intel QAT enhances security and compression performance in cloud, networking, big data, and storage applications.
The CyberServe Xeon SP® range replaces InfiniBand technology with a newer, more advanced interconnect called Omni-Path, allowing for 100Gbps bandwidth with no loss of PCIe lanes.
Intel Xeon Scalable Processors Series, Dual Xeon Processor, 1U Server, 3 x PCIE Slots (2x FHHL, 1 x LP), Redundant Power Supply, Dual Gigabit or 10GbE LAN, 4 Drive bays, dedicated LAN port for IPMI Remote management and remote KVM, also includes Slide Rails as Standard

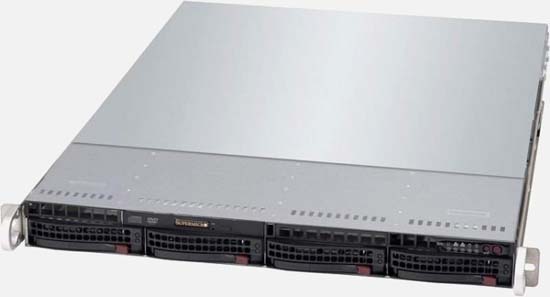

The CyberServe SP2-104E is a high density 1U rackmount server with 4x 3.5" SAS or SATA 12Gb/s hard drives, Redundant Power Supply.
Based on the Intel Xeon Scalable Processor series, the CyberServe SP2-104S is a Dual Xeon Scalable Processor server supporting up to 12 modules of DDR4 ECC or LR DIMM Modules - upto 1.5TB RAM 2667Mhz., upto 28 Cores per processors
The CyberServe Xeon SP2-104E is a 1U rackmount server configurable with 2x Xeon Scalable Processor - Dual Socket series range of processors. Built using the latest enterprise-class server technology, the CyberServe Xeon SP2-104E has 4x 2.5", 3.5 SATA and 12Gb/s SAS Hot-Swap Drives and is ideal for those requiring a combination of high performance and density with its 12x DDR4 ECC Registered memory banks providing up to GB of high-performance server memory. The CyberServe Xeon SP2-104E boasts High RAM Capacity, Extra Expansion Slots and Redundant Power Supply - Optional as just a few of its core features.The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-104E can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted. Our rackmount servers with a high RAM / memory capacity are purpose built for RAM intensive applications such as virtualisation. Servers with extra expansion slots allow for future expandability or use in applications which require a large amount of PCI cards.
The Broadberry CyberServe range of enterprise-class rack servers features high efficiency power supplies with leading features such as Titanium level efficiency, digital switching control, super quiet operation, redundancy, DC inputs, FCC class B certification, remote monitoring with PMBus, support for GPUs/graphics cards and Broadberry's signature server level quality and reliability; in a variety of form factors and capacities.
CyberServe power supplies are designed for enterprise level applications where high quality and reliability are critical, and where the highest power efficiencies are required to reduce TCO.
With strong experience in the server systems market, Broadberry are experienced in testing and validating these power supplies in all relevant enterprise environments under all necessary operating conditions, compiling long operating records for multiple applications.
The CyberServe Xeon SP2-104E supports 4x 2.5", 3.5 desktop and enterprise-class SATA hard drives, which represents the best cost per GB ratio storage technology.The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-104E can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
Configure for your Network
The CyberServe Xeon SP2-104Eâ€™s ready to be deployed into your network environment with a wide-range of high-throughput connectivity options.
Configure the CyberServe Xeon SP2-104E to match your application I/O demands and network infrastructure with up to 3x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors.
Whether your application demands the highest networking throughput, or youâ€™re looking for a more modest enterprise-grade networking option such as Gb/E, the CyberServe Xeon SP2-104E is totally customisable with a wide range of robust I/O connectivity options.
IPMI 2.0 & KVM over IP
Whereas most server manufacturers charge ongoing licence fees for IPMI, powerful, industry-standard server management is built in to the CyberServe Xeon SP2-104E at no extra cost.
Using the dedicated 3rd LAN port or on-board Gigabit Ethernet ports, you can take full control of the server as though you were standing in front of it through your web browser from anywhere in the world through a pre-defined IP address and password.
Check the health of the CyberServe Xeon SP2-104E components, fan speeds, temperatures, update firmware, check logs & set SMTP alerts for you pre-configure thresholds, and list the health of all your servers on one simple screen.Â
The CyberServe Xeon SP2-104E IPMI feature also allows complete Keyboard Video and Mouse (KVM) control, and send CD/DVD Images over IP to install software & operating systems remotely.
Expand with PCI-Express Expansion
Configure the CyberServe Xeon SP2-104E with up to 3x Intel Gigabit Ethernet Adaptors , Intel 10 Gigabit Ethernet Adaptors, Qlogic Fibre Channel Adaptors, Intel 25/40/50 Gigabit Ethernet Adaptors, Mellanox ConnectX-4 Series Ethernet Adaptors. With a wide range of enterprise-class PCI-Express add-on options available, the CyberServe Xeon SP2-104E is a flexible platform for a wide-range of applications.The added benefit of hot-swap hard drives means that the CyberServe Xeon SP2-104E can have any of its 4 hot-swap hard drives removed during maintenance whilst the system is running completely un-interrupted.
We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.
You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".
We take security seriously. Broadberry servers offer the latest technologies including TPM, self-encryption and military-grade FIPS certification.
Best Price Guarantee
Broadberry offer a Best Price Guarantee on all server and storage solutions. You won't find the same spec cheaper anywhere else.
Ease of Management
Feature-rich IPMI with out of band management and redfish API to allow easy management and monitoring of your Broadberry systems.
Unlike other leading manufacturers, Broadberry assign all customers a dedicated account manager with direct access. There’s no call centres!
Our trained engineers will pre-configure your server to your requirements, and are here to help over the phone when your server arrives.
All Broadberry solutions come with a comprehensive 3-5 year warranty, with a range of upgraded warranty options available.
From clip-in slide rails to pre-configured RAID and pre-installed OS, our engineers ensure installation fast and simple!
Our open-platform approach offers high compatibility with your existing infrastructure and no vendor-lockin.
Every business is different. Configure every element of your solution to your requirements using our powerful online configurator.
Our servers are built to grow with your organization, whether that be by purchasing additional drives, or additional scale-out nodes.
Since the introduction of the first Broadberry PC in 1989, we’ve continually innovated and responded to emerging technologies and markets.
GSA Schedule Holder
We offer rapid GSA scheduling for custom configurations. For specific hardware requirements we can have your configuration posted on the GSA Schedule within 2-4 weeks.
The Intel Xeon Scalable Processor Family improves upon previous generation Intel Xeon E5 and E7 V4 generations in just about every metric.
Intel® Xeon® Bronze processors are performance optimized for small business and basic storage servers.
Intel® Xeon® Silver processors offer the hardware-enhanced performance and security required for data center compute, network, and storage optimized for mid-sized and growing IT organisations.
Intel® Xeon® Gold processors offer high performance, advanced reliability, and hardware-enhanced security optimized for demanding data center, hybrid-cloud compute, network, and storage workloads.
Intel® Xeon® Platinum processors offer the industry's best performance for mission-critical and hybrid cloud workloads, real-time analytics, machine learning, and artificial intelligence, with monumental leaps in I/O, memory, storage, and network technologies.
|up to 8 Cores||up to 12 Cores||up to 22 Cores||up to 28 Cores|
|up to 2 Sockets||up to 2 Sockets||up to 4 Sockets||up to 8+ Sockets|
|up to 1.5TB||up to 1.5TB||up to 6TB||up to 12TB|
The CyberServe Xeon-SP range has been designed from the ground up for the latest industry advances for today's datacenter applications.
Powered by Intel Xeon Scalable Processors, the CyberServe Xeon-SP range of servers have the design flexibility to thrive across common applications and mission critical operations or to harness actionable insights from advanced real-time analytics and emerging imperatives like artificial intelligence, 5G, autonomous driving and more.
This agility enables you to seize new business opportunities from our increasingly data-fueled smart and connected world.
|Intel Xeon Processor E5-2600 v4||Intel Xeon Scalable Processor|
|Cores Per Socket||Up to 22||Up to 28|
|Threads Per Socket||Up to 44 threads||Up to 56 threads|
|Last-level Cache (LLC)||Up to 55 MB||Up to 38.5 MB (non-inclusive)|
|QPI/UPI Speed (GT/s)||2x QPI channels @ 9.6 GT/s||Up to 3x UPI @ 10.4 GT/s|
|PCIe* Lanes /Controllers /Speed(GT/s)||40 / 10 / PCIe 3.0 (2.5, 5. 8 (GT/s)||48 / 12 / PCIe 3.0 (2.5, 5,8 GT/s)|
|Memory Population||4 channels of up to 3 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|6 channels of up to 2 RDIMMs,
LRDIMMs, or 3DS LRDIMMs
|Max Memory Speed||Up to 2400||Up to 2666|
Reduce your IT infrastructures footprint by consolidating servers onto a VMware® certified Broadberry server
We've seen the virtualisation market explode since around 2005 and year-after-year noticed a steady increase in customer requirements for servers to run VMware® virtualisation software on. Although most of servers will run VMware® smoothly, these rack servers have been specifically designed and sent off for VMware® ESXI 6.0 certification.
Our VMware® certified servers have been designed and built from the ground-up to run your virtualised IT infrastructure. Based on industry-compliant, enterprise-grade hardware, our VMware certified servers are configurable with up to 1/2 TB of memory and up to 16 cores for processing.
