Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0®

Configure a Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0

  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x16 (for SIOM )
  • 6 Hot-swap 2.5" SAS3/SATA3 or 2 Hot-swap 2.5" SAS3/SATA3 + 4 optional NVMe U.2
  • SAS3 via Broadcom 3008
  • SIOM Network card, 1 dedicated IPMI LAN port
  • 1 VGA, 2 USB 3.0 ports
  • 3x 4cm 20k RPM middle fans
  • 2200W Redundant Power Supplies Titanium Level (96% Efficiency)

Configure From $13,310.77  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

FatTwin - Expanded Compute and Storage

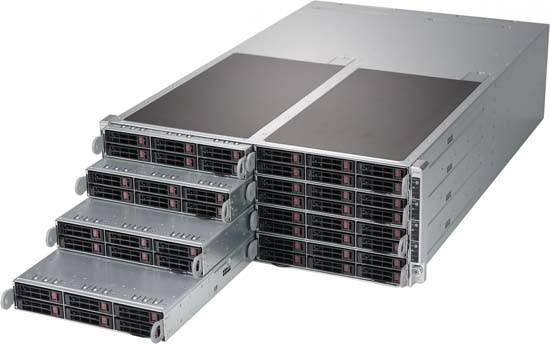

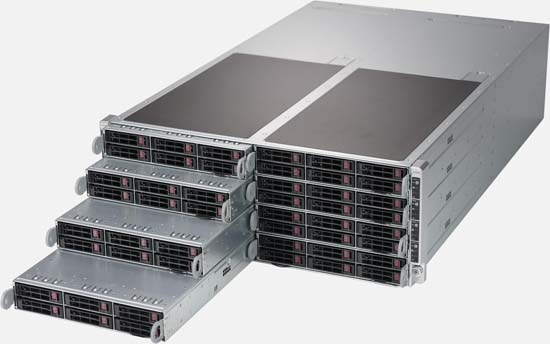

This server is a 4U FatTwin, a flexible to configure, easy to maintain, cost effective and reliable server that is capable of superb performance with low power consumption.

Designed As Microcloud Server

Built as a Microcloud server, the Supermicro MicroCloud modular server system delivers 12 modular server nodes conveniently integrated into a 29" deep chassis.

Configure With Hot-Swap Drives

The Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Featuring Broadcom 3008 SAS3

Featuring a Broadcom 3008 SAS3 network adapter, this feature delivers performance and reliability. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-F619P2-RC0
  • SuperServer F619P2-RC0 (Black)
Motherboard

Super X11DPFR-SN
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-165W with IVR
Cores
  • Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
Network Controllers
  • Flexible networking via SIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC
Input / Output (per node)
SAS
  • 6 SAS3 (12Gbps) ports
NVMe
  • 4 NVMe U.2 option
LAN
  • SIOM flexible Network card
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F418BC2-R2K20BP
Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 150 lbs (68.04 kg)
  • Gross Weight: 200 lbs (90.71 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • Information LED (UID, Fan failure, Overheat)
Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (Low-profile)
  • 1 PCI-E 3.0 x16 (SIOM)
Drive Bays (per node)
Hot-swap
  • 6 Hot-swap 2.5" SAS3/SATA3 or 2 Hot-swap 2.5" SAS3/SATA3 + 4 optional NVMe U.2
M.2
  • M.2 Support
Backplane
1 SAS/SATA backplane
System Cooling (per node)
Fans
  • 3x 4cm 20k RPM middle fans
Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
  • 1200W with Input 100-127Vac
  • 1800W with Input 200-220Vac
  • 1980W with Input 220-230Vac
  • 2090W with Input 230-240Vac
  • 2200W with Input 220-240Vac (for UL/cUL use only)
  • 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
  • 50-60Hz
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 183.3A / Min: 0A (220-240Vac)
5VSB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification UL/cUL/CB/BSMI/CE/CCC
Titanium Level
[ Cert. in progress ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 4U Supermicro SuperServer based on 16x Intel Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 is configurable with up to 48x Hot-Swap Drives drive bays, and designed for optimal performance with 96x DDR4 memory sockets .

The Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 supports the Intel Intel Xeon Scalable Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 boasts 16 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer F619P2-RC0 | SYS-F619P2-RC0 Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Supermicro FatTwin Servers
  • High-Density Twin Servers: FatTwin - Best TCO
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 12.3TB
