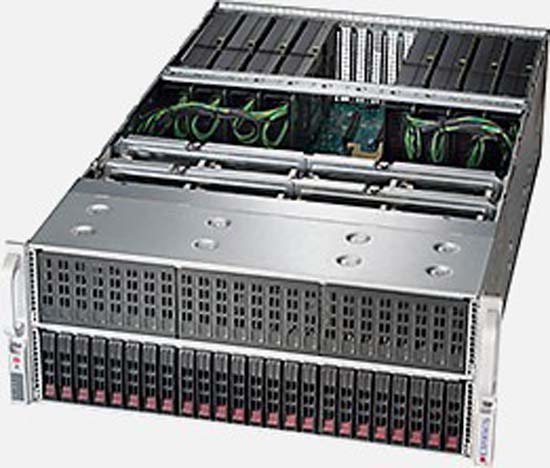

Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT®

Configure a Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1.5TB ECC, up to DDR4 2133MHz; 24x DIMM slots
  • Expansion slots: 8 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x8 (in x16) slots 1 PCI-E 2.0 x4 (in x16) slot
  • Dual 10GBase-T LAN with Intel X540
  • 24x 2.5" Hot-swap drive bays
  • 8x 92mm RPM Hot-Swap cooling fans
  • 1600W Redundant (2+2) Power Supplies; Platinum Level (94%+)

Configure From $4,839.94  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Server Optimised For GPU

Optimised for GPU, this system is capable of generating hugely parallel processing power, delivering extreme optimisation for the most intensive applications.

Configure With Hot-Swap Drives

The Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.


[[
Product SKUs
SYS-4028GR-TRT
  • SuperServer 4028GR-TRT (Black)
Motherboard

Super X10DRG-OT+-CPU
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 18 Cores / Up to 45MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
GPU/Xeon Phi Support
  • K1/K2/K40M/K80/Xeon Phi
System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 1.5TB ECC LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Port 10GbE
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC
Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 4U Rackmountable
  • Rackmount Kit (MCP-290-00057-0N)
Model
  • CSE-418GTS-R3200B
Dimensions
Height
  • 7.0" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 29" (737mm)
Weight
  • Net Weight: 80 lbs (36.2 kg)
  • Gross Weight: 135 lbs (61.2 kg)
Available Colors
  • Black
Drive Bays
Hot-swap
  • 24x 2.5" Hard drive bays
Expansion Slots
PCI-Express
  • 8x PCI-E 3.0 x16 (double-width) slots
  • 2x PCI-E 3.0 x8 (in x16) slots
  • 1x PCI-E 2.0 x4 (in x16) slot
  • li>
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
  • 8x 92mm RPM Hot-Swappable Cooling Fans
Shrouds
  • 1x Air Shroud (MCP-310-84806-0B)
  • 1x Air Shroud (MCP-310-84807-0B)
Power Supply
1000W/1600W 1U Redundant Power Supply
AC Input
  • 1000W @ 100-127V, 12.9A Max., 50-60Hz
  • 1600W @ 200-240V, 9.5A Max., 50-60Hz
DC Output
  • 1000W: +12V/82A; +12Vsb/2A
  • 1600W: +12V/132A; +12Vsb/2A
Certification Platinum Level
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 8x fan connectors
Other Features
  • Chassis intrusion detection
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 4U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT is configurable with up to 21x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2400MHz DDR4 memory sockets .

The Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT supports the Xeon E5 2600 v4 Series Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT boasts 6 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: E5 2600 v4
  • Range: GPU Servers GPU Servers and Workstations
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 768GB

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.


How to order

You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".

Supermicro SuperServer 4028GR-TR | SYS-4028GR-TR Supermicro SuperServer 4028GR-TRT | SYS-4028GR-TRT
Configure From: $4,689
Configure
Configuring From: $4,840
ChassisSYS-4028GR-TRSYS-4028GR-TRT
U Size4U4U
Processor FamilyE5 2600 v4E5 2600 v4
High-Density Twin Servers
Drive BaysHot-Swap DrivesHot-Swap Drives
HDD Size2.5" Drives2.5" Drives
Integrated FeaturesIntegrated Dual Gigabit LAN
CPU SocketsDual ProcessorDual Processor
