3rd Gen Intel Xeon Scalable Processors TYAN Servers

Configure TYAN servers powered by the ground-breaking, high performance, next-gen optimised 3rd Gen Intel Xeon Scalable Processor family.

3rd Gen Intel Xeon Scalable processors deliver:

  • A powerful platform for data fueld enterprise.
  • A new level of HPC and high performance data analytics innovation.
  • A next-gen platform optimised for cloud, high performance, enterprise, security and network.

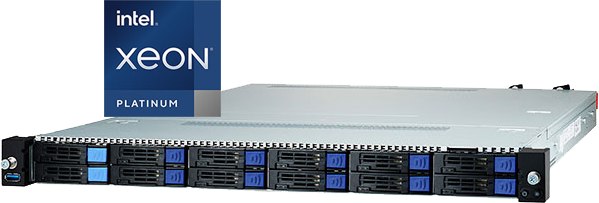

TYAN Thunder CX GC68-B7126 (B7126G68V4E4HR)

1U2S Cloud Server, 4 LFF + 4 NVMe U.2. 2x FH/HL PCIe Gen.4x16 slots. Redundant power supply.

U Size:
1U
Processor Family:
3rd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
2x PCIe
Configure From: $2,819
Configure
TYAN Thunder CX GC68A-B7126 (B7126G68AV10E2HR)

1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen.4 x16 slots. Redundant power supply.

U Size:
1U
Processor Family:
3rd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
2x PCIe
Configure From: $2,875
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

TYAN systems powered by the latest 3rd Gen Intel Xeon Scalable processors possess built-in acceleration and advanced security capabilities. The processors in this range have been designed through years of ground-breaking innovation to excel in even the most computationally intensive environments.

TYAN servers powered by 3rd Gen Intel Xeon Scalable processors are optimised for cloud, HCI, security, enterprise, security, AI and IoT workloads.

3rd Gen Intel Xeon Scalable processors feature up to 40 powerful cores. Through leveraging the new features of 3rd Gen Xeon Scalable processors which include higher per-core performance, enhanced bandwidth, Intel Crypto Acceleration, Intel SGX and Intel Optane persistent memory, TYAN server solutions powered by 3rd Gen Intel Xeon Scalable processors are designed and built to meet even the most demanding cloud, AI, enterprise and HPC workloads.


3rd Gen Intel Xeon Scalable Processors Are...
  • Optimised for cloud, HPC, security, enterprise and IoT workloads. They feature up to 40 powerful cores and a variety of frequency and power level options.
  • Imbued with Intel Crypto Acceleration, which boosts the performance of encryption intensive workloads (including SSL web serving, VPN/firewalls and 5G infrastructure) whilst lowering the impact on performance by pervasive encryption.
  • The only data centre CPU featuring end-to-end data science tools and built-in AI acceleration.
  • Engineered and built to meet the demands of cloud workloads and to support a wide variety of XaaS environments.
  • Powered by Intel SGX, which safeguards data and application code while in use from the edge to the data centre to the public cloud.

3rd Gen Xeon Scalable Platinum Processors
  • Up to 40 cores per Intel Xeon Platinum processor.
  • Up to 8 memory channels at up to 3200 MT/s
  • Features built-in AI acceleration (Intel DL Boost) with int8 (VNNI) and bfloat165 quantisation for accelerated AI inference and training performance.
  • Features Intel SGX, the most deployed trusted execution environment, with up to 512GB enclave per processor.
3rd Gen Xeon Scalable Gold Processors
  • Up to 32 cores per Intel Xeon Gold processor
  • Up to 8 memory channels at up to 3200 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 64GB enclaves per processor.
3rd Gen Xeon Scalable Silver Processors
  • Up to 20 cores per Intel Xeon Silver processor.
  • Up to 8 memory channels at up to 2667 MT/s.
  • Featuring Intel SGX, the most deployed trusted execution environment, with up to 8GB enclave per processor.

Built-in workload and service acceleration.

Intel Deep Learning Boost (Intel DL Boost) is specifically built in for the flexibility to run demanding and complex AI workloads on the same hardware as your existing workloads.

All 3rd Gen Intel Xeon Scalable processors have int8 available. Vector Neural Network Instructions (VNNI) enhance inference workloads through maximising use of compute resources, enhancing cache utilisation and curtailing potential bandwidth bottlenecks.

Select 3rd Gen Intel Xeon Scalable processors have bfloat16 available, the industries very first x86 support of Brain Floating Point 16-bit (blfloat16) 5 delivers improved artificial intelligence inference and training performance with Intel Deep Learning Boost.


High Performance Computing (HPC) boosts innovation in fields like manufacturing, life science, energy, oil and gas, finance and many more. Powering these diverse HPC workloads demands flexibility and the potential to scale.

TYAN servers powered by 3rd Gen Intel Xeon Scalable processors provide incredible performance for compute-intensive HPC applications with huge improvements over the previous generations. Core architecture innovations, enhanced memory bandwidth, advanced security features, built-in AI and HPC acceleration allow users to reduce complexity and unleash the full power of their data. 3rd Gen Intel Xeon Scalable processors are designed and crafted through decades of innovation and optimised for the most demanding workload requirements both on-premises and in the cloud.

  • Flexible performance on real-world HPC workloads.
  • Improved performance utilising Intel’s newest processor architecture and 10nm process technology to enhance a wide variety of HPC applications.
  • Enhanced memory bandwidth (from 6 to 8 channels) running at increased speeds.
  • Flexible configuration to set cores and frequencies to most effectively match workload requirements with Intel Speed Select Technology.

Intel Software Guard Extensions (Intel SGX) delivers fine grain data protection through application isolation in memory, separate from the OS or hardware configuration.

Intel Crypto Acceleration delivers built-in Intel Secure Hash Algorithm, Vector AES-NI, Vector CLMUL, VPMADD52 instructions and RSA/DH encryption protocols.

Intel Total Memory Encryption provides full physical memory encryption support to improve data and VM protection.

Intel Platform Firmware Resilience (Intel PFR) utilises an Intel FPGA to safeguard, detect and fix, delivering NIST SP800-193 firmware resiliency. Platform firmware can be validated prior to execution, whilst runtime monitoring and filtering help safeguard against manipulation. In the event of a compromise, Intel PFR delivers automated recovery in minutes.


3rd Gen Intel Xeon Scalable Processor Specifications

Maximum Core Count Supported Up to 40
Base Frequency Supported Up to 3.1 GHz
Maximum Single-Core Intel Turbo Boost Technology 2.0 Frequency Supported Up to 4.3 GHz
Processor Cache Memory Support Up to 38.5 MB of L3 Cache (1.375 MB/core)
Intel Ultra Path Interconnect (Intel UPI) Six Intel UPI supported per processor (Up to 10.4 GT/s)
Processor Performance Support Intel Turbo Boost 2.0 Technology, Intel Hyper-Threading Technology (Intel HT), Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology
Intel Speed Select Technology (Intel SST) Intel SST Core Power (SST-CP) and Intel SST Turbo Frequency (SST-TF) features are supported on select processors
Intel Deep Learning Boost VNNI and bfloat16 supported
Intel Advanced Vector Extension 512 (Intel AVX-512) Support Intel AVX-512 with up to 2 FMA support
Number of Processor Sockets Supported 4 or 8 sockets
Thermal Design Point (TDP) Supporting a range from 150W to 260W depending on customer needs and implementation
Socket Type Socket P+ (4189 pins)
System Memory Support 6 channels, Up to DDR4 3200 MT/s (1 DPC) with ECC support
12 DIMMs/socket, Support for 16Gb density DIMMs
Intel Optane Persistent Memory Support Intel Optane Persistent memory 200 series supported on 4-socket systems only
Maximum DRAM System Memory Supported Up to 4.5 TB per socket
Supported Chipsets Intel C620A series chipsets, available with integrated Intel QuickAssist Technology
PCH I/O PCI Express* 3 - Up to 20 lanes (8 GT/s)
USB* 3.0 - Up to 10 ports
SATA* 3.0 - Up to 14 ports
DMI - Up to 4 lanes, Gen 3
Platform Manageability Intel Server Platform Services (Intel SPS) and Intel Resource Director Technology (Intel RDT)
Storage Manageability Intel Volume Management Device (Intel VMD)
