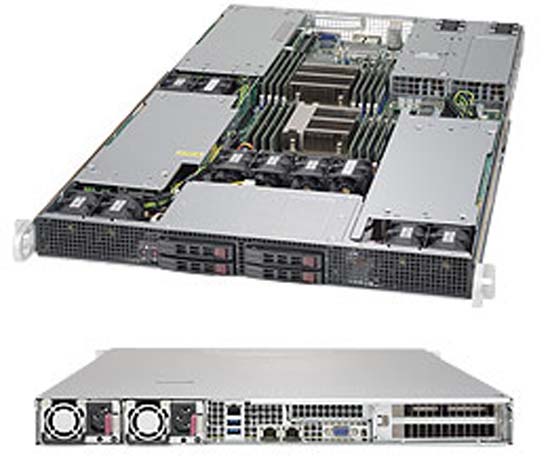

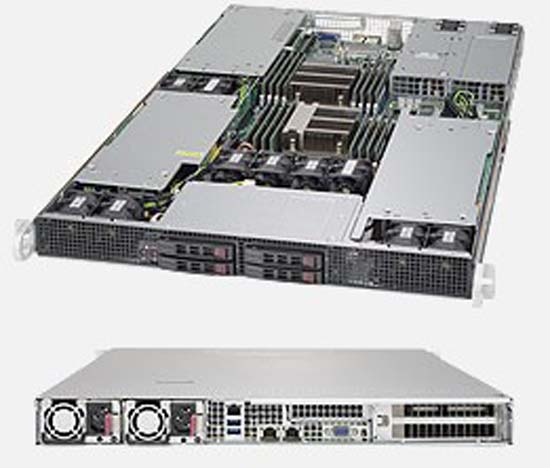

Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR®

Configure a Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC, up to DDR4 2133MHz; 16x DIMM sockets
  • 4x PCI-E 3.0 x16 slots (3x GPU/MIC cards optional), 1x PCI-E 3.0 x8 LP slot
  • Intel i350-AM2 Dual port GbE LAN
  • 4x Hot-swap 2.5" SATA3 Drive Bays
  • 1600W Redundant Power Supplies Platinum Level (94%+)
  • 10x Counter rotating fans w/ optimal fan speed control
  • Smart server management tools

Configure From $2,235.46  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Server Optimised For GPU

Optimised for GPU, this system is capable of generating hugely parallel processing power, delivering extreme optimisation for the most intensive applications.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-1028GR-TR
  • SuperServer 1028GR-TR (Black)

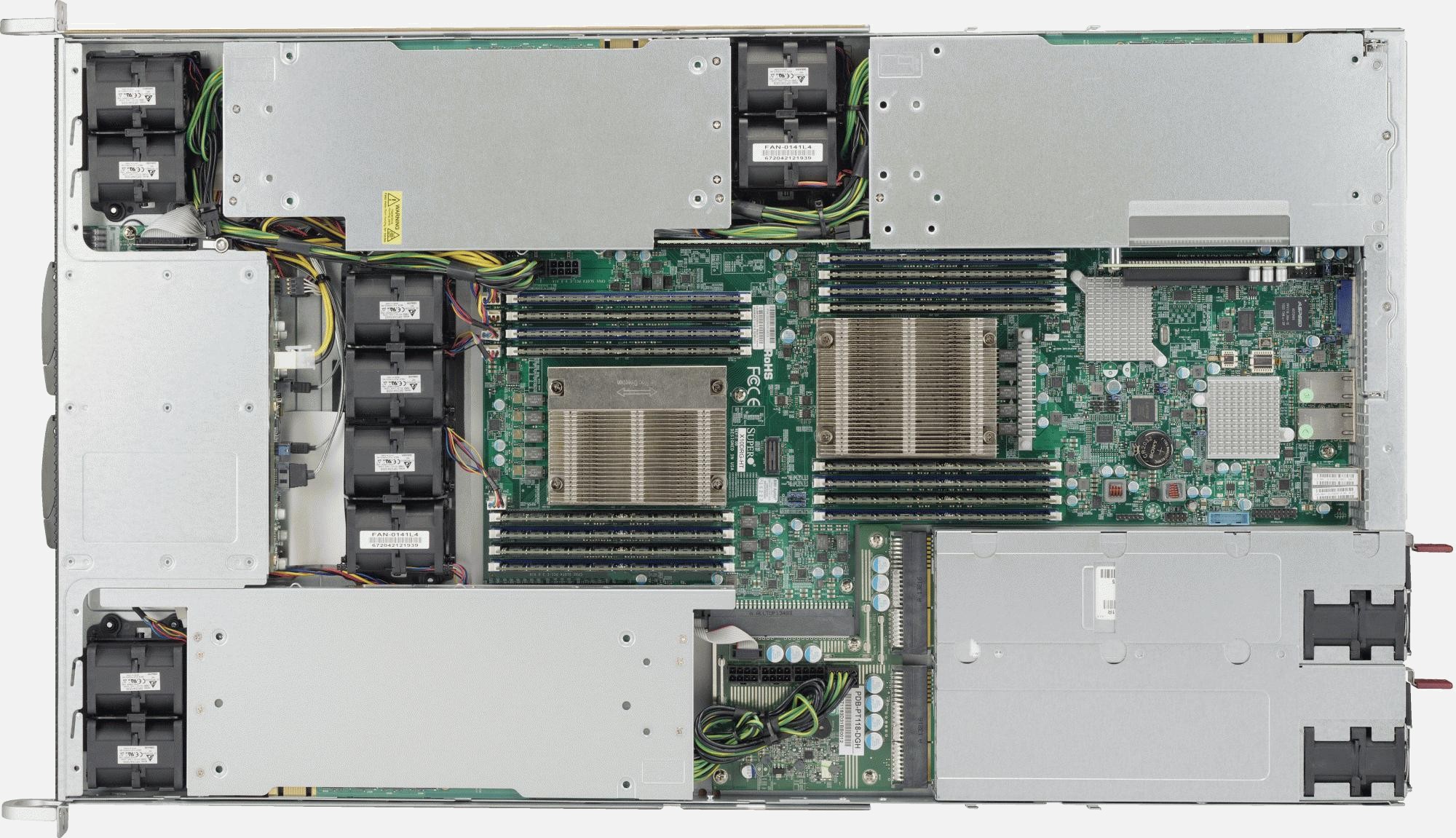

Motherboard

Super X10DRG-H
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 145W TDP **)
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 18 Cores / Up to 45MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note ** Please contact your Supermicro sales representative for additional details.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM sockets
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel C612 Express chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC
Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (2 rear, 2 via header)
  • 2x USB 2.0 ports (2 via headers)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GH-R1K66B
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 30.6" (777mm)
Package
  • 24" (H) x 8" (W) x 40" (D)
Weight
  • Net Weight: 35 lbs (15.9 kg)
  • Gross Weight: 48 lbs (21.8 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x16 slots
    (3x GPU/Xeon Phi cards optional)
  • 1x PCI-E 3.0 x8 (in x16) low-profile slot
Drive Bays
Hot-swap
  • 4x 2.5" Hot-swap drive bays
System Cooling
Fans
  • 10x counter-rotating fans with optimal fan speed control
Power Supply
1000W/1600W 1U Redundant Power Supply
AC Input
  • 1000W @ 100-127V, 12.9A Max., 50-60Hz
  • 1600W @ 200-240V, 9.5A Max., 50-60Hz
DC Output
  • 1000W: +12V/82A; +12Vsb/2A
  • 1600W: +12V/132A; +12Vsb/2A
Certification Platinum Level
(Cert. in progress)

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • CPU Core 6-Phase-switching voltage regulator
FAN
  • Total of ten 4-pin PWM fans
  • 10x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 10x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 16x DDR4 memory sockets .

The Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: GPU Servers Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB

Broadberry Price Guarantee

We're so confident in our great value solutions, If you find a cheaper genuine price for the same specifications elsewhere we'll match it.


How to order

You can order by either calling us and speaking to one of our experienced US technical sales team, or pressing "Email Quote".

Supermicro SuperServer 1028GR-TR | SYS-1028GR-TR Supermicro 1028GR-TRT | SYS-1028GR-TRT
Configuring From: $2,235
Configure From: $2,391
Configure
ChassisSYS-1028GR-TRSYS-1028GR-TRT
U Size1U1U
Processor FamilyE5 2600 v4E5 2600 v4
High-Density Twin Servers
Drive BaysHot-Swap DrivesHot-Swap Drives
HDD Size3.5" Drives2.5" Drives
Integrated FeaturesIntegrated Dual Gigabit LANDual 10GBase-T Ports
CPU SocketsDual ProcessorDual Processor
