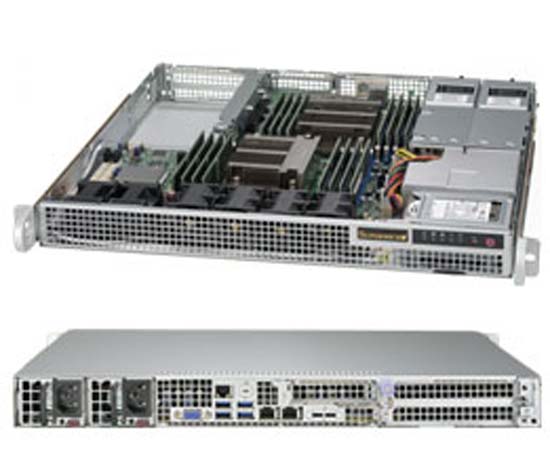

Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR®

Configure a Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR

  • Short Depth 16.9", WIO
  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 2x PCI-E 3.0 x16 (FHHL) slots
  • 2x 2.5" Fixed drive bays w/ bracket
  • Intel i350 Dual port GbE LAN
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0, 4x USB 2.0
  • 400W Redundant Power Supplies Gold Level; BBP option

Configure From $1,300.10  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 2TB Of RAM

Equipable with up to a tremendous 2TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Configure With Fixed Drives

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR can be configured with reliable fixed drives which are a cheaper alternative to hot-swappable drives, lowering the overall cost of the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-1028R-WMR
  • SuperServer 1028R-WMR

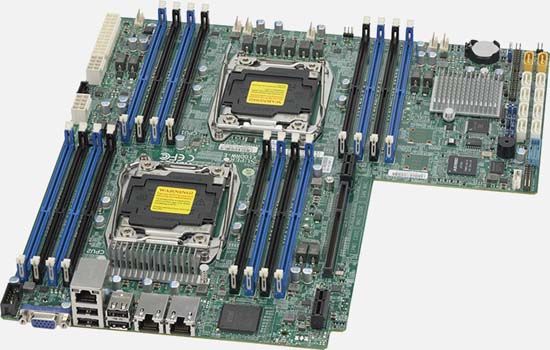

Motherboard

Super X10DRW-E
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
Input / Output
Serial ATA
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (via header)
  • 4x USB 2.0 ports (rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Header
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-514-R400W
Dimensions
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Weight
  • Net Weight: 16.5 lbs (7.48 kg)
  • Gross Weight: 27 lbs (12.25 kg)
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 Full-height, Half-length slots
Drive Bays
Internal
  • 2x 2.5" Fixed drive bays with bracket
Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)
System Cooling
Fans
  • 4x 40x56mm PWM fan; 2x fans for AOC cooling
Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
AC Input
  • 100-240V, 50-60Hz, 6-3A
DC Output
  • +5V standby: 3A
  • +12V: 33A
DC Output
With Power Distributor
  • +5V: 25A
  • +3.3V: 25A
  • -12V: 0.6A
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR is configurable with up to 2x Fixed Drives drive bays, and designed for optimal performance with 16x DDR4 memory sockets .

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR boasts 2 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1028R-WMR | SYS-1028R-WMR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Fixed Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 2TB
