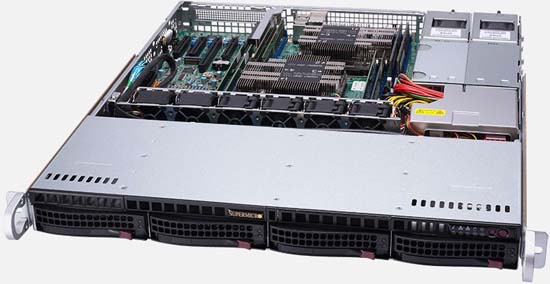

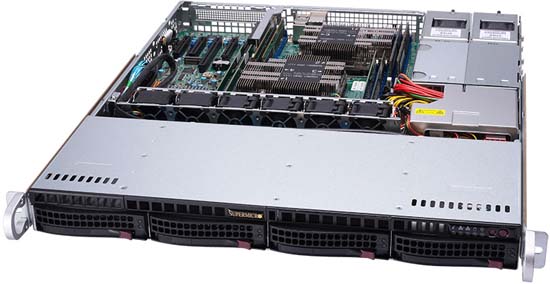

Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR®

Configure a Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR

  • Data Center Optimized
  • Web Server
  • Enterprise Server
  • Managed Hosting
  • Short Depth
  • Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8 DIMM slots
  • 1 PCI-E 3.0 x8 (FHHL) slot
  • 4 Hot-swap 3.5" SATA3 drive bays
  • 2 GbE LAN ports via Marvell 88E1512
  • IPMI 2.0 + KVM with Dedicated LAN
  • 1 VGA, 2 USB 2.0 (rear)
  • 2 SuperDOM (Disk on Module) ports; 1 PCIe/SATA M.2 drive connector
  • 600W Redundant Power Supplies Platinum Level Certified

Configure From $1,610.01  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Performance Breakthroughs

Powered by the revolutionary Intel Xeon SP processor range, delivering massive improvements in every metric over the previous generation of Xeon E7 and E5 processors.

Up to 12 DIMMs per CPU

This system is capable of supporting up to 12 DIMMS per CPU. That’s a significant advancement on the previous limit, which was 9 DIMMS per CPU.

Security Without Compromise

Intel Xeon Scalable Processor based servers feature security without compromise, incorporating a number of technologies that aid in safeguarding your system.

Accelerated Applications

Applications can be accelerated via the addition of Intel QAT (Quick Assist Technology) to a software-defined infrastructure environment.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Optimised For Cloud Computing

Optimised for cloud computing. Cloud computing provides a variety of advantages including better security, better TCO, 24 hour access and easy implementation.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-6019P-MTR
  • SuperServer 6019P-MTR (Black)
Motherboard

Super X11DPL-i
Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • Intel Xeon Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-140W with IVR
Cores
  • Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset
  • Intel C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Marvell 88E1512 PHY Gigabit Ethernet controller
  • Supports 1000BASE-T
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM port (header)
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • 256Mb SPI Flash EEPROM with AMI BIOS
Management
Software
  • Intel Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TQC-R608CB
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 19.98" (508mm)
Package
  • 23.4" (W) x 8.5" (H) x 29.7" (L)
Weight
  • Net Weight: 20.7 lbs (9.4 kg)
  • Gross Weight: 30.0 lbs (13.6 kg)
Available Colors
  • Black

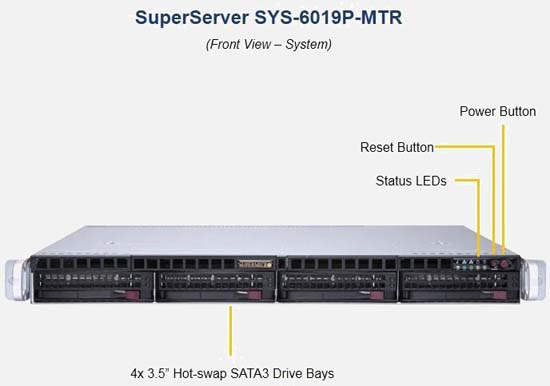

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot-swap
  • 4 Hot-swap 3.5" SATA3 drive bays
Backplane
SAS2/SATA3 Backplane
System Cooling
Fans
  • 4x 4cm 22.5K RPM middle cooling fans
Power Supply with Power Distributor
600W Redundant Power Supplies
Dimension
(W x H x L)
  • 54.5 x 40.25 x 220 mm
Input
  • 90-264V, 50-60Hz, 7.5 - 2.5A
+12V
  • Max: 50A / Min: 0.5A
+5Vsb
  • Max: 3A / Min: 0A
Output Type
  • Input: IEC 320 C-14
  • Output: Gold Finger
Certification
UL/cUL/CB/CE/BSMI/CCC
Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C ~ 35C (50F ~ 95F)
  • Non-operating Temperature:
    -40C to 60C (-40F to 140F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

]]

A 1U Supermicro SuperServer based on 2x Intel Xeon Scalable Processors range of processors, the Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR is configurable with up to 8x Hot-Swap Drives drive bays, and designed for optimal performance with 12x DDR4 memory sockets .

The Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR supports the Intel Xeon Scalable Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6019P-MTR | SYS-6019P-MTR Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: Intel Xeon Scalable Processors
  • Range: Cloud Computing Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 1.5TB
