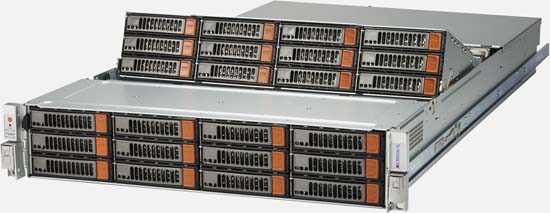

Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L®

Configure a Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 3TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 24x DIMM slots
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
  • SIOM for flexible networking options
  • 24x 3.5" Hot-swap SAS3/SATA3 drive bays
  • LSI 3008 SAS3 IT mode controller
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x 8cm hot-swap redundant PWM fans
  • 1600W Redundant Power Supplies Titanium Level (96%)

Configure From $4,124.96  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


[[
Product SKUs
SSG-6028R-E1CR24L
  • SuperServer 6028R-E1CR24L (Black)
Motherboard

Super X10DSC+
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
SAS3
  • LSI 3008 SAS3 IT mode
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • SIOM support for flexible networking options
Graphics
  • ASPEED AST2400 BMC
Input / Output
LAN
  • LAN ports via SIOM Add-On-Card:
    (See SIOM Compatibility Matrix)
USB
  • 3x USB 3.0 ports (2 rear + 1 Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826SE1C4-R1K62
Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 34" (863.6mm)
  • With Cable Management Arm Installed:
    41" (1041.4mm)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
  • 24x 3.5" Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5" rear Hot-swap drive bays
Backplane
Two 12 port SAS3 12G expander backplanes, each supporting up to 12x 2.5" SAS3 drives
System Cooling
Fans
  • 5x 8cm hot-swap redundant PWM cooling fans
Ultra Power Supply
1600W Redundant Titanium Level Power Supplies with PMBus
Total Output Power
  • 1000W/1600W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level Certified
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 2U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L is configurable with up to 24x Hot-Swap Drives drive bays, and designed for optimal performance with 24x DDR4 memory sockets .

The Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L supports the Xeon E5 2600 v4 Series Processors family in a high-density 2U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperStorage Server 6028R-E1CR24L | SSG-6028R-E1CR24L Specs
  • Brand: Supermicro
  • U Size: 2U
  • Processor Family: E5 2600 v4
  • Range: HPC Supermicro SuperStorage
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 3.1TB
