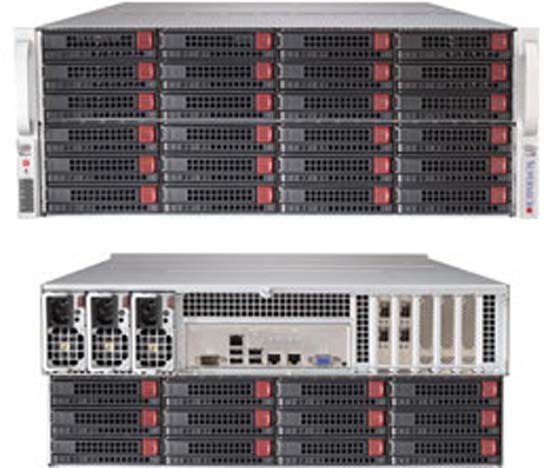

Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L®

Configure a Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L

  • Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 and E5-2600 v2 family†
  • Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM sockets
  • 4x PCI-E 3.0 x8 slots
  • Intel i350 GbE Controller; 4x ports
  • 72x 3.5" SAS2/SATA3 HDDs in 36x (24 front + 12 rear) Hot-swap Drive Bays (2x HDD per bay w/ LEDs for each drive)
  • Chassis remains securely mounted in rack during HDD replacement, safer and more reliable than top loading solutions
  • 2x 2.5" Internal drive bays
  • 3x IT mode SAS2 Storage Controllers (LSI 2308)
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 7x Heavy duty PWM fans
  • 1Triple 1280W (2+1) Redundant Digital Platinum Level (95%) PS 2x PWS-2K02P-1R Optional

Configure From $10,810.56  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Designed For High Capacity

Designed and optimised for storage, this server is built for high storage capacity. It also features enterprise grade reliability and is ideal if you require a lot of storage space.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.

Integrated Quad Gigabit LAN

The Integrated Quad Gigabit LAN network adapter which delivers performance and reliability. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


Product SKUs
SSG-6047R-E1R72L
  • SuperServer 6047R-E1R72L (Black)
Motherboard

Super X9DRD-7LN4F-JBOD
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel Xeon processor E5-2600
    and E5-2600 v2 family
    (up to 135W TDP *)
* Please contact your Supermicro sales representative for additional details
Note BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Up to 1TB DDR3 ECC LRDIMM
  • Up to 512GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel C602J Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
  • SAS2 via LSI 2308; IT Mode/Pass-through
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Renesas SH7757 BMC
Network Controllers
  • Intel i350 Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • G200 (Renesas SH7757 BMC w/ graphic controller)
Super I/O
  • Nuvoton W83527
Input / Output
Serial ATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
SAS
  • 8x SAS2 ports (6Gbps)
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 9x USB 2.0 ports total
    (4 rear + 4 via header + 1 Type A)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-847DE16-R1K28LPB
    (only sold as complete system)
Dimensions
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 35" (889mm)
Weight Unpopulated
  • Net Weight: 67 lbs (30.4 kg)
  • Gross Weight: 104 lbs (47.2 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power fail LED
Expansion Slots
PCI-Express
  • 4x PCI-E 3.0 x8 slots (Low-profile)
Drive Bays
Hot-swap
  • 72x 3.5" SAS2/SATA3 in 36x Hot-swap drive bays (2x HDD per bay w/LEDs for each drive)
  • Double-sided: 24 front + 12 rear HDD Bays
Fixed
  • Internal Drive Bracket suppports 2x 2.5" drive bays
Backplane
SAS2 / SATA3 single expander per backplane
System Cooling
Fans
  • 7x 9cm hot-swap cooling fans
  • Redundant cooling
Power Supply with Digital Switching Control & PMBus 1.2
1280W High-Efficiency (95%+) power supply
AC Input
  • 1000W Output @ 100-140V, 12-8A, 50-60Hz
  • 1280W Output @ 180-240V, 8-6A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification
Platinum Certified
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

A 4U Supermicro SuperServer based on 2x E5 2600 range of processors, the Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L is configurable with up to 72x Hot-Swap Drives drive bays, and designed for optimal performance with 16x 1600MHZ DDR3 memory sockets .

The Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L supports the Xeon E5 2600 Series Processors family in a high-density 4U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperStorage Server 6047R-E1R72L | SSG-6047R-E1R72L Specs
  • Brand: Supermicro
  • U Size: 4U
  • Processor Family: E5 2600
  • Range: Storage Supermicro SuperStorage
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 512GB
