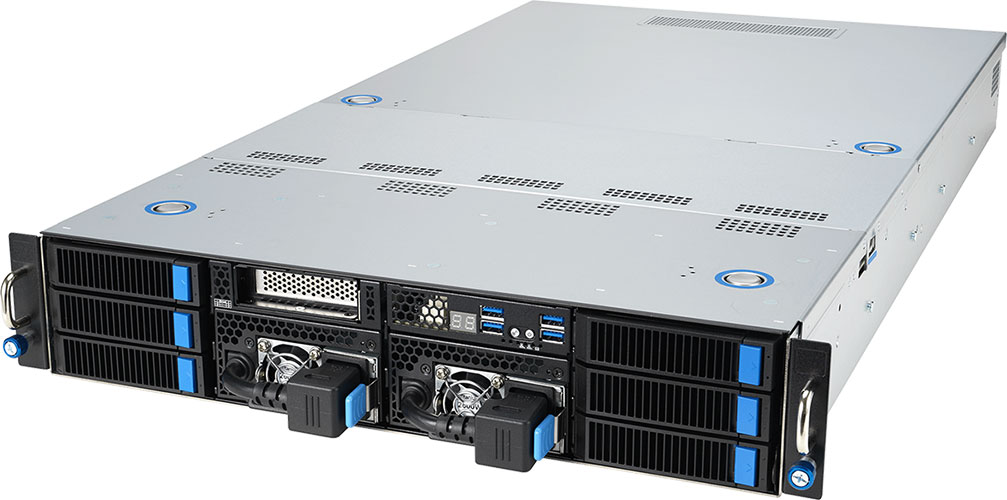

ASUS ESC4000A-E12 (90SF02M1-M000W0)®

Single AMD EPYC 9004 Series Processors, Supports up to 4x double slot GPU cards, Dual 2600W redundant power supply, 4x 3.5"/2.5" NVMe/SATA/SAS & 2x 3.5"/2.5" SATA/SAS hot-swappable drive bays.

  • Key Applications : Cloud Computing, Virtualised & VDI Application and Enterprise & HPC Application
  • AMD EPYC™ 9004 Series Processors (up to 400W)
  • AMD EPYC 9004 Series Processors with AMD 3D V-Cache™ technology
  • 6x 3.5"/2.5" Hot-Swap Drive Bays: Support up to 4x NVMe/SATA/SAS & 2x SATA/SAS
  • 2x Gigabit LAN ports (RJ45, I350-AM2)
  • Up to 12x PCIe Gen5 slots
  • 8x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards
  • Front: 1x PCIe x8 slot (Gen5 x8 link, LP, HL)
  • Rear: 4x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or
  • 8x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards
  • 2x PCIe x16 slots (Gen5 x16 link, FH, HL)
  • 1x PCIe x8 slot (Gen5 x0/x8 link, LP, HL)
  • 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply



Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Single Processor

Designed for server applications where multi processors are not needed. Single processors are a more cost-effective option.

Configure With Up to 1.5TB of RAM

The ASUS ESC4000A-E12 (90SF02M1-M000W0) can be configured with up to 1.5TB of RAM.

Redundant Power Supply

Featuring a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The system features hot-swap hard drives, which provide more flexibility and allow you to remove drives without needing to shut down the system.

Configure with 3.5" Drives

Configure with 3.5" drives. These drives are more cost-effective, offer more flexibility and a larger storage capacity.

Dual Port Intel I350-AM2 Gigabit LAN controller

Configure with Dual Port Intel I350-AM2 Gigabit LAN controller

Supports SATA

This system can be configured with SATA drives for cost-effective 12gb/s storage.

Supports SAS

This system can be configured with SAS drives for bi-directional storage, which deliver enhanced speed, reliability and availability.

Supports NVMe

This system can be configured with NVMe drives, which are capable of significantly better performance than SATA and SAS.
