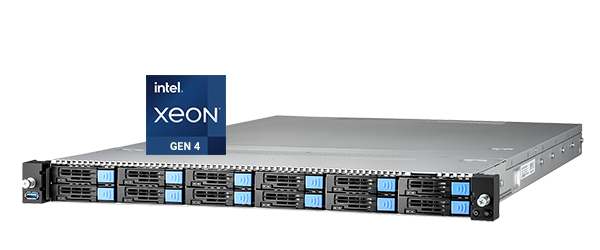

4th Gen Intel Xeon Scalable Processors TYAN Servers

Configure TYAN servers powered by the latest 4th Gen Intel Xeon Scalable Processor family, designed with the most built-in accelerators to improve performance across the fastest-growing workloads.

Tyan's 4th Gen Intel Xeon Scalable processor powered servers feature more cores, newer I/O options DDR5 Memory, PCIe Gen 5, and CXL 1.1 with built-in accelerators to improve performance across the fastest-growing workloads in AI, analytics, networking, storage, and HPC.

  • 2.0X Performance increase
  • 50% More Cores
  • DDR5 / PCIe 5.0

Rackmount or Tower 3.5" Drives NVMe Drives
TYAN Thunder HX FT65TB5652 (B5652F65TV6E2H-G)

1S Professional Workstation with 6 LFF & 2 NVMe U.2 bays, 4x FH/FL PCIe Gen.5 x16 slots. 6x 3.5" SATA/ 2x 2.5" NVMe Hot Swap Drive bays.

U Size:
4U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Single Processor
Maximum RAM:
1.5 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Configure From: $2,933
Configure
Rackmount or Tower 3.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder HX FT65TB5652 (B5652F65TV6E2H-2T-N)

1S Professional Workstation with 6 LFF & 2 NVMe U.2 bays, 4x FH/FL PCIe Gen.5 x16 slots. 6x 3.5" SATA/ 2x 2.5" NVMe Hot Swap Drive bays.

U Size:
4U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Single Processor
Maximum RAM:
1.5 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Network Controller:
Intel X710-AT2
Configure From: $3,229
Configure
2.5" Drives NVMe Drives
TYAN Thunder CX GC68A-B7136 (B7136G68AV4E8HR)

1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 4x SATA/8x NVMe hot swap drive bays, 850W Redundant power supply.

U Size:
1U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
2x PCIe
Features:
4x front hot-swap 2.5" SATA, 8x front hot-swap NVMe Drive bays
Configure From: $3,512
Configure
2.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder CX GC68A-B7136 (B7136G68AV4E8HR-2T)

1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 4x SATA/8x NVMe hot swap drive bays, 850W Redundant power supply. Dual 10GbE Base-T LAN.

U Size:
1U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
2x PCIe
Features:
4x front hot-swap 2.5" SATA, 8x front hot-swap NVMe Drive bays
Configure From: $3,675
Configure
2.5" Drives NVMe Drives
TYAN Thunder CX GC79AB7132 (B7132G79AE12HR)

1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 12x NVMe hot swap drive bays, 1200W Redundant power supply.

U Size:
1U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
2x PCIe
Features:
12x hot-swap NVMe bays with 4x SATA/SAS hybrid
Configure From: $3,948
Configure
3.5" Drives NVMe Drives
TYAN Thunder SX TS70B7136 (B7136T70V10E4HR)

2U2S Warm Storage Server, Dual 4th Gen Intel Xeon CPU, 16 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 12x 3.5"/2.5" SATA/4x NVMe hybrid hot swap drive bays, 1200W Redundant power supply.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Features:
12 Front Hot-Swap 3.5" SATA 6G Drive Bays
Configure From: $4,081
Configure
2.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder CX GC79AB7132 (B7132G79AE12HR-2T)

1U2S Cloud Server, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 12x NVMe hot swap drive bays, 1200W Redundant power supply. Dual 10GbE Base-T LAN.

U Size:
1U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
2x PCIe
Features:
12x hot-swap NVMe bays with 4x SATA/SAS hybrid
Network Controller:
Intel X710-AT2
Configure From: $4,112
Configure
3.5" Drives NVMe Drives
TYAN Thunder HX TS75B7132 (B7132T75E8HR)

2U Dual 4th Gen Xeon CPU, 32 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 8x SATA/NVMe hot swap drive bays, 1600W Redundant power supply.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
4x PCIe
Configure From: $4,221
Configure
3.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder SX TS70B7136 (B7136T70V10E4HR-2T)

2U2S Warm Storage Server, Dual 4th Gen Intel Xeon CPU, 16 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 12x 3.5"/2.5" SATA/4x NVMe hybrid hot swap drive bays, 1200W Redundant power supply. Dual 10GbE Base-T LAN.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Features:
12 Front Hot-Swap 3.5" SATA 6G Drive Bays
Network Controller:
Intel X710-AT2
Configure From: $4,245
Configure
3.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder HX TS75B7132 (B7132T75E8HR-2T)

2U Dual 4th Gen Xeon CPU, 32 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 8x SATA/NVMe hot swap drive bays, 1600W Redundant power supply. Dual 10GB Base-T LAN

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
4x PCIe
Network Controller:
Intel X710-AT2
Configure From: $4,380
Configure
2.5" Drives NVMe Drives
TYAN Thunder SX TS70AB7136 (B7136T70AV12E8HR)

2U Dual 4th Gen Xeon CPU, 16 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 10x SATA/8x NVMe hot swap drive bays, 1200W Redundant power supply.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Configure From: $4,393
Configure
2.5" Drives NVMe Drives
TYAN Thunder HX TS75AB7132 (B7132T75AV10E16HR)

2U Dual 4th Gen Xeon CPU, 32 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 10x SATA/16x NVMe hot swap drive bays, 2000W Redundant power supply.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Configure From: $4,533
Configure
2.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder SX TS70AB7136 (B7136T70AV12E8HR-2T)

2U Dual 4th Gen Xeon CPU, 16 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 10x SATA/8x NVMe hot swap drive bays, 2000W Redundant power supply. Dual 10GB Base-T LAN.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Network Controller:
Intel X710-AT2
Configure From: $4,557
Configure
2.5" Drives NVMe Drives 10Gb Lan
TYAN Thunder HX TS75AB7132 (B7132T75AV10E16HR-2T)

2U Dual 4th Gen Xeon CPU, 32 DIMM HPC / VM Server, 2x FH/HL PCIe Gen 5.0 x16 slots. 10x SATA/16x NVMe hot swap drive bays, 2000W Redundant power supply. Dual 10GB Base-T LAN.

U Size:
2U
Processor Family:
4th Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
5x PCIe
Network Controller:
Intel X710-AT2
Configure From: $4,692
Configure

Call a Broadberry Storage & Server Specialist Now: 1 800 496 9918

10x Higher PyTorch Performance

for Artificial Intelligence

2x Networking & Storage Capacity

at the same power envelope

3x Data Analytics Performance

higher RocksDB performance

1.53x Average Performance Gain

over previous generation

Tyan Features and Benefits

Intel® In-Memory Analytics Accelerator (Intel® IAA) - Accelerate performance and enhance power efficiency in database and analytics workloads using the Intel In-Memory Analytics Accelerator (Intel IAA). This advanced technology improves query throughput and reduces memory usage for in-memory databases and big data analytics. Well-suited for popular open-source databases and data stores like RocksDB, Redis, Cassandra, and MySQL, Intel IAA enables faster query execution and optimised memory utilisation, enhancing overall data-driven operations efficiency.

Intel® Advanced Matrix Extensions (Intel® AMX)Accelerate AI functions on the CPU with Intel Advanced Matrix Extensions (Intel AMX). This integrated accelerator enhances the efficiency of deep learning training and inference on 4th Gen Intel Xeon Scalable processors. It is particularly well-suited for tasks like natural language processing, recommendation systems, and image recognition, improving overall speed.

Intel® QuickAssist Technology (Intel® QAT) - Minimise system resource usage with Intel QuickAssist Technology (Intel QAT). It provides accelerated cryptography, key protection, and data compression, offloading encryption and decryption tasks. By freeing up processor cores, this integrated accelerator enables systems to handle a larger number of clients efficiently.

Intel® Data Streaming Accelerator (Intel® DSA) - Enhance storage, networking, and data-intensive workload performance by optimising streaming data movement and transformation. The 4th generation of Intel Xeon Scalable processors introduces advanced features such as Intel Advanced Matrix Extensions (Intel AMX), Intel QuickAssist Technology (Intel QAT), and Intel Data Streaming Accelerator (Intel DSA). Intel DSA is designed to reduce overhead in large-scale data center deployments by offloading common data movement tasks. It accelerates data movement across the CPU, memory, caches, and connected memory, storage, and network devices.

Intel® Dynamic Load Balancer (Intel® DLB) - Enhance multi-core Intel Xeon Scalable processor performance in network data handling using Intel Dynamic Load Balancer (Intel DLB). This innovative technology efficiently distributes network processing tasks across CPU cores/threads based on system load, optimising CPU resource utilisation and ensuring efficient data processing. Intel DLB also restores packet sequencing for concurrently processed networking data, maintaining desired data order.

Compute Express Link (CXL) - Leverage CXL 1.1 to decrease data centre compute latency, lower TCO, and revolutionise next-gen workloads. CXL is an alternative protocol operating over standard PCIe, supporting both PCIe and CXL devices on the same link. With unified memory space between CPUs and accelerators, CXL transforms data centre server design for reduced latency, improved performance, and cost savings.


Tyan is pleased to announce a new line of server barebones designed to suit the needs of the channel and our system integration partners. The Tyan Thunder series is a line of server barebones based on Intel's latest technology including the Intel® Xeon® Scalable Processors. These barebones are designed to offer best-in-class server technology to our customers.

Tyan Xeon Gen 4 Features and Benefits

Thunder products spanning four product segments:

Tyan servers have been designed with the aim of minimising power consumption while delivering top-notch performance. Tyan provides complete and ready-to-use racks of systems, resulting in a faster time for a customer to be productive.


The Tyan server range of single and dual processor servers powered by the 4th gen Intel Xeon Scalable Processors come with the most technologically advanced DDR5 RAM available. DDR5 doubles memory density which greatly improves reliability which leads to significant performance improvements when combined with Intel's 4th Gen CPUs.

The Tyan server range of server solutions built around Intel’s latest generation of Xeon Scalable processor gen 4 brings the much anticipated PCIe5 with it. This doubles the theoretical limitations of I/O over PCIe 4 – boosting bandwidth from 64GB/s to 128GB/s and frequency from 16GHz to 32GHz.


The 4th Generation of Intel® Xeon® Scalable processors come equipped with integrated accelerators and cutting-edge security technologies that cater to the most sought-after workload demands.

4th Gen Intel® Xeon® Scalable Processors are specifically optimised for high-performance, low-latency network and edge workloads. They have up to 80 lanes of PCIe 5.0—ideal for fast networking, high-bandwidth accelerators, and high-performance storage devices.

Configure your Tyan Server with Intel 4th Gen Silver range for essential performance, improved memory speed and power efficiency.

They offer hardware-enhanced performance required for entry-level data centre compute, network and storage.

  • Up to 2-socket scalability
  • Two Intel UPI ports at 16 GT/s
  • 80 lanes of PCIe 5.0 with CXL
  • DDR5 at up to 4,800 MT/s (1 DIMM per channel) or 4,400 MT/s (2 DIMMs per channel)
  • Intel AVX-512 (two 512-bit FMAs)
  • Intel HT Technology and Intel Turbo Boost Technology
  • Intel DL Boost and Intel AMX
  • Intel SGX up to 64 GB max enclave size
  • Workload acceleration with Intel QAT, Intel DLB, Intel DSA, and Intel IAA

Configure your Tyan Server with Intel 4th Gen Gold range for intensive data centre, multicloud compute, and network/storage workloads.

They deliver improved performance, enhanced memory capabilities, hardware-enhanced security, and workload acceleration.

  • Up to 4-socket scalability
  • Three Intel UPI ports at 16 GT/s
  • 80 lanes of PCIe 5.0 with CXL
  • DDR5 at up to 4,800 MT/s (1 DIMM per channel) or 4,400 MT/s (2 DIMMs per channel)
  • Intel Optane PMem 300 series supported
  • Intel AVX-512 (two 512-bit FMAs)
  • Intel HT Technology and Intel Turbo Boost Technology
  • Intel® Deep Learning Boost (Intel® DL Boost) and Intel AMX
  • Intel SST
  • Advanced RAS capabilities
  • Intel SGX up to 128 GB max enclave size
  • Workload acceleration with Intel QAT, Intel DLB, Intel DSA, and Intel IAA

Configure your Tyan Server with Intel 4th Gen Platinum range for advanced data analytics, AI, high-density infrastructure, and multicloud workloads.

They deliver High levels of performance, platform capabilities and industry-leading workload acceleration.

  • Up to 8-socket scalability
  • Four Intel UPI ports at 16 GT/s
  • 80 lanes of PCIe 5.0 with CXL
  • DDR5 at up to 4,800 MT/s (1 DIMM per channel) or 4,400 MT/s (2 DIMMs per channel)
  • Intel® Optane™ persistent memory (PMem) 300 series supported
  • Intel AVX-512 (two 512-bit FMAs)
  • Intel® Hyper-Threading Technology (Intel® HT Technology) and Intel® Turbo Boost Technology
  • Intel AMX
  • Intel SST Advanced reliability, availability, and serviceability (RAS) capabilities
  • Intel SGX up to 128 GB max enclave size (up to 512 GB max enclave size on select SKUs)
  • Workload acceleration with Intel QAT, Intel DLB, Intel DSA, and Intel IAA
Product Name Total Cores Max Turbo Frequency Processor Base Frequency Cache
General Purpose
Intel® Xeon® Silver 4410Y Processor 12 3.90 GHz 2.00 GHz 30 MB
Intel® Xeon® Silver 4416+ Processor 20 3.90 GHz 2.00 GHz 37.5 MB
Intel® Xeon® Gold 5418Y Processor 24 3.80 GHz 2.00 GHz 45 MB
Intel® Xeon® Gold 5420+ Processor 28 4.10 GHz 2.00 GHz 52.5 MB
Intel® Xeon® Gold 6430 Processor 32 3.40 GHz 2.10 GHz 60 MB
Intel® Xeon® Gold 6438Y+ Processor 32 4.00 GHz 2.00 GHz 60 MB
Intel® Xeon® Platinum 8452Y Processor 36 3.20 GHz 2.00 GHz 67.5 MB
Performance Optimised
Intel® Xeon® Gold 5415+ Processor 8 4.10 GHz 2.90 GHz 22.5 MB
Intel® Xeon® Gold 6426Y Processor 16 4.10 GHz 2.50 GHz 37.5 MB
Intel® Xeon® Gold 6434 Processor 8 4.10 GHz 3.70 GHz 22.5 MB
Intel® Xeon® Gold 6442Y Processor 24 4.00 GHz 2.60 GHz 60 MB
Intel® Xeon® Gold 6444Y Processor 16 4.00 GHz 3.60 GHz 45 MB
Intel® Xeon® Gold 6448Y Processor 32 4.10 GHz 2.10 GHz 60 MB
Intel® Xeon® Platinum 8460Y+ Processor 40 3.70 GHz 2.00 GHz 105 MB
Intel® Xeon® Platinum 8462Y+ Processor 32 4.10 GHz 2.80 GHz 60 MB
Intel® Xeon® Platinum 8468 Processor 48 3.80 GHz 2.10 GHz 105 MB
Intel® Xeon® Platinum 8470 Processor 52 3.80 GHz 2.00 GHz 105 MB
Intel® Xeon® Platinum 8480+ Processor 56 3.80 GHz 2.00 GHz 105 MB
IoT Optimised / Long-Life Cycle Support
Intel® Xeon® Silver 4410T Processor 10 4.00 GHz 2.70 GHz 26.25 MB
Specialised for Networking/5G/Edge
Intel® Xeon® Gold 5411N Processor 24 3.90 GHz 1.90 GHz 45 MB
Intel® Xeon® Gold 5418N Processor 24 3.80 GHz 1.80 GHz 45 MB
Intel® Xeon® Gold 6421N Processor 32 3.60 GHz 1.80 GHz 60 MB
Intel® Xeon® Gold 6428N Processor 32 3.80 GHz 1.80 GHz 60 MB
Intel® Xeon® Gold 6438N Processor 32 3.60 GHz 2.00 GHz 60 MB
Intel® Xeon® Platinum 8470N Processor 52 3.60 GHz 1.70 GHz 97.5 MB
Intel® Xeon® Platinum 8471N Processor 52 3.60 GHz 1.80 GHz 97.5 MB
Specialised for Storage & HCI
Intel® Xeon® Gold 5416S Processor 16 4.00 GHz 2.00 GHz 30 MB
Intel® Xeon® Gold 6454S Processor 32 3.40 GHz 2.20 GHz 60 MB
Specialised for Cloud/IaaS/Density
Intel® Xeon® Gold 6438M Processor 32 3.90 GHz 2.20 GHz 60 MB
Intel® Xeon® Platinum 8458P Processor 44 3.80 GHz 2.70 GHz 82.5 MB
Intel® Xeon® Platinum 8461V Processor 48 3.70 GHz 2.20 GHz 97.5 MB
Intel® Xeon® Platinum 8468V Processor 48 3.80 GHz 2.40 GHz 97.5 MB
Specialised for Database & Analytics
Intel® Xeon® Gold 6416H Processor 18 4.20 GHz 2.20 GHz 45 MB
Intel® Xeon® Gold 6418H Processor 24 4.00 GHz 2.10 GHz 60 MB
Intel® Xeon® Gold 6434H Processor 8 4.10 GHz 3.70 GHz 22.5 MB
Intel® Xeon® Gold 6448H Processor 32 4.10 GHz 2.40 GHz 60 MB
Intel® Xeon® Platinum 8444H Processor 16 4.00 GHz 2.90 GHz 45 MB
Intel® Xeon® Platinum 8450H Processor 28 3.50 GHz 2.00 GHz 75 MB
Intel® Xeon® Platinum 8454H Processor 32 3.40 GHz 2.10 GHz 82.5 MB
Intel® Xeon® Platinum 8460H Processor 40 3.80 GHz 2.20 GHz 105 MB
Intel® Xeon® Platinum 8468H Processor 48 3.80 GHz 2.10 GHz 105 MB
Intel® Xeon® Platinum 8490H Processor 60 3.50 GHz 1.90 GHz 112.5 MB
Single Socket Only Processor
Intel® Xeon® Bronze 3408U Processor 8 1.90 GHz 1.80 GHz 22.5 MB
Intel® Xeon® Gold 5412U Processor 24 3.90 GHz 2.10 GHz 45 MB
Intel® Xeon® Gold 6414U Processor 32 3.40 GHz 2.00 GHz 60 MB


Extensive Testing

Before leaving our build and configuration facility, all of our server and storage solutions undergo an extensive 48 hour testing procedure. This, along with the high quality industry leading components ensures all of our systems meet the strictest quality guidelines.


Customization Service

Our main objective is to offer great value, high quality server and storage solutions, we understand that every company has different requirements and as such are able to offer a complete customization service to provide server and storage solutions that meet your individual needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the US, and since 1989 been trusted as the preferred supplier of server and storage solutions to some of the world's biggest brands, including:
