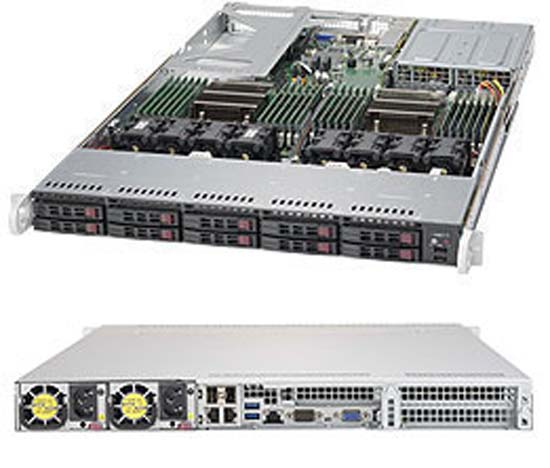

Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+®

Configure a Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 3TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 24x DIMM slots
  • 2x PCI-E 3.0 x16 slots (FH, 10.5" L), 2x PCI-E 3.0 x8 slots (LP, 1 internal)
  • 2x 10G SFP+ and 2x GbE LAN ports
  • 10x Hot-swap 2.5" drive bays: 10x SAS3/SATA3 ports via Expander and AOC: AOC-S3108L-H8iR-16DD, AOC-S3108L-H8iR, AOC-S3008L-L8e, AOC-S3008L-L8i
  • 4x heavy duty fans w/ optimal fan speed control
  • 750W Redundant Power Supplies Platinum Level (94%+)

Configure From $2,108.97  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 3TB of RAM

Equipable with up to a monstrous 3TB of RAM, allowing for super fast and ultra efficient multi-tasking for even the most demanding of applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-1028U-E1CRTP+
  • SuperServer 1028U-E1CRTP+ (Black)
Motherboard

Super X10DRU-i+
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 2x GbE and 2x SFP+ ports via AOC-URN2-I4GXS
  • Intel i350 Gigabit Ethernet Controller
  • Intel X710 10G SFP+
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC
Input / Output
SAS
  • 10x SAS3 ports support via expander and storage Add-on Cards
  • One of the following storage Add-on cards required:

    AOC-S3108L-H8iR-16DD (12Gbps SAS3/RAID 0, 1, 5, 6, 10, 50, 60, 2GB DDR3 cache, PCI-E Gen3 16 HDD)

    AOC-S3108-H8iR (12Gbps SAS3/RAID 0, 1, 5, 6, 10, 50, 60, 2GB DDR3 cache, PCI-E Gen3)

    AOC-S3008L-L8i (12Gbps SAS3/RAID 0,1 and 10, PCI-E Gen3)

    AOC-S3008L-L8e (12Gbps SAS3/HBA, PCI-E Gen3)
LAN
  • 2x RJ45 GbE LAN ports
  • 2x 10G SFP+ ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports
    (2 rear, 2 front, 1 Type A)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Management
Software
  • SuperDoctor 5
  • Intel Node Manager 3.0
  • Watch Dog
  • NMI
  • SUM and SSM
  • Optional IPMI 1.5 / 2.0
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R751P-T
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 27.8" (707mm)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
  • 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Drive Bays
Hot-swap
  • 10x 2.5" Hot-swap drives supported via expander
System Cooling
Fans
  • 5x heavy duty fans with optimal fan speed control
  • 3x additional fans optional
Air Shroud
  • 1x Air Shroud
Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ is configurable with up to 10x Hot-Swap Drives drive bays, and designed for optimal performance with 24x DDR4 memory sockets .

The Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ boasts 4 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1028U-E1CRTP+ | SYS-1028U-E1CRTP+ Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
