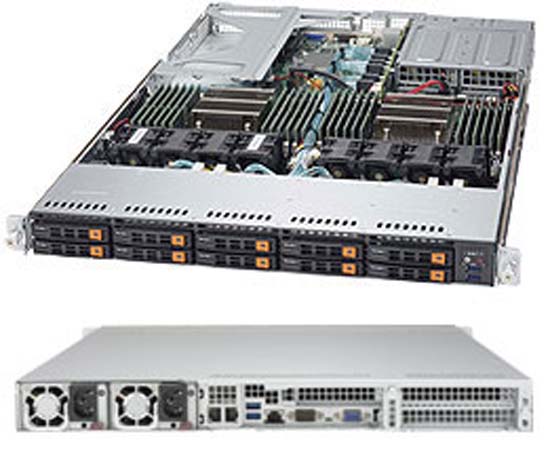

Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+®

Configure a Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1.5TB ECC, up to DDR4 2133MHz; 24x DIMM slots

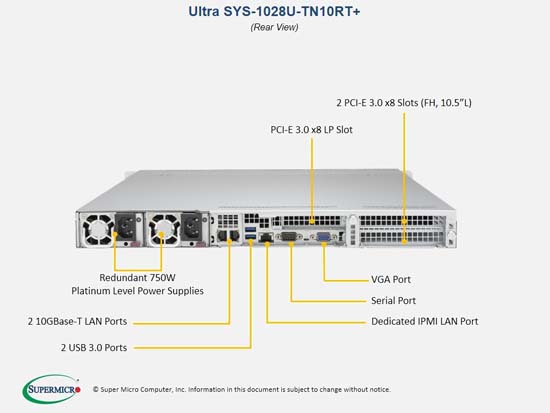

  • 3x PCI-E 3.0 x8 slots (2x FH 10.5" L, 1x LP)
  • 2x 10GBase-T ports

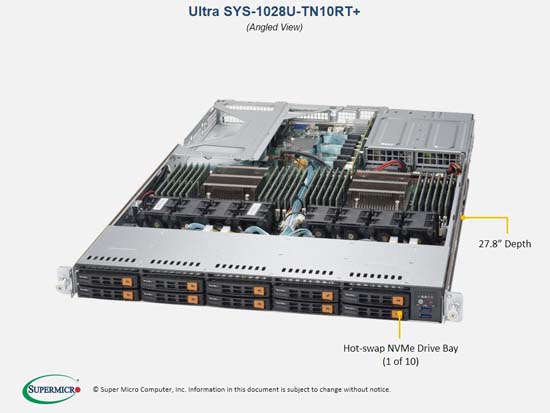

  • 10x 2.5" Hot-swap Drive Bays: 6x NVMe ports (NVMe from CPU 1); 4x NVMe/SAS3 hybrid ports for optional SAS3/SATA3 (NVMe from CPU 2)
  • 8x heavy duty fans w/ optimal fan speed control
  • 1000W Redundant Power Supplies Titanium Level (96%)


This system cannot currently be configured due to supply issues.

Please call us on 1 800 496 9918 to discuss

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1.5TB of RAM

Equipable with up to 1.5TB of RAM, which allows for fast and effective multi-tasking for even the most RAM intensive of applications.

Optimised For High Performance Computing

Fully optimised for HPC, this server is excellent at deal with computationally-intensive applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Featuring Dual 10GBase-T

The Dual 10GBase-T network adapter provides high performance. This server is free from vendor lock-in and features wide ranging hardware and software compatibility.


A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ is configurable with up to 10x Hot-Swap Drives drive bays, and designed for optimal performance with 24x 2666MHz DDR4 memory sockets .

The Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ supports the Intel Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 1028U-TN10RT+ | SYS-1028U-TN10RT+ Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: HPC Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 3.1TB
