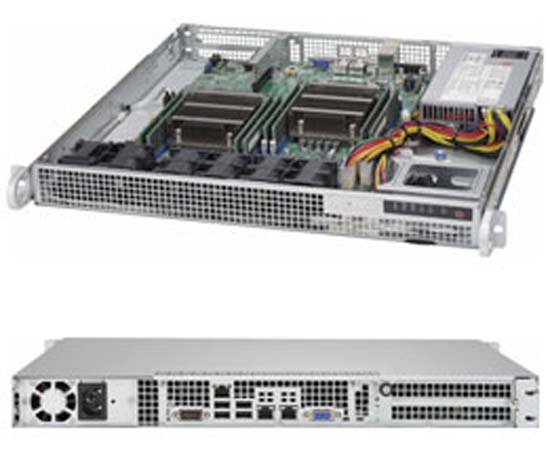

Supermicro SuperServer 6018R-MD | SYS-6018R-MD®

Configure a Supermicro SuperServer 6018R-MD | SYS-6018R-MD

  • Data Center Optimized
  • Cost Effective
  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 8x DIMM slots
  • 1x PCI-E 3.0 x8 (FHHL) slot
  • 2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays
  • Intel i350 Dual-Port 1GbE LAN
  • I/O ports: 1x VGA, 1x COM, 4x USB 2.0
  • 500W High-Efficiency Power Supply Platinum Level Certified
  • 2x SuperDOM (Disk on Module) ports
  • IPMI 2.0 + KVM with Dedicated LAN

Configure From $1,018.07  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 6018R-MD | SYS-6018R-MD Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Optimised For Data Centre

Optimised for data centre use, this system is designed for use in high temperature environments and take advantage of data centre free air cooling environments.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6018R-MD | SYS-6018R-MD features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 2.5" Drives

The Supermicro SuperServer 6018R-MD | SYS-6018R-MD can be configured with 2.5" drives, a more space efficient and low noise option. These drives also offer energy savings and increased flexibility.

Integrated Dual Gigabit LAN

Featuring an Integrated Dual Gigabit LAN network adapter which delivers reliability and performance. This server is not vendor locked and features wide ranging hardware and software compatibility.


[[
Product SKUs
SYS-6018R-MD
  • SuperServer 6018R-MD (Silver)
Motherboard

Super X10DRD-L
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM, 512 ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC
Input / Output
SATA
  • 6x SATA3 (6Gbps) ports
  • I-SATA 4 & I-SATA 5 support SATA DOM
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 7x USB 2.0 ports
    (4 rear, 2 headers, 1 Type A)
Video
  • 1x VGA port
Serial Port / Header
  • 2x COM ports (1 rear, 1 header)
DOM
  • 2x SuperDOM (Disk on Module) ports
Management
Software
  • IPMI 2.0
  • Intel Node Manager
  • SuperDoctor 5
  • SSM
  • SPM
  • SUM
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-514-505
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 16.9" (429mm)
Package
  • 27" (W) x 8" (H) x 24" (L)
Gross Weight
  • 26 lbs (11.80 kg)
Available Colors
  • Silver
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot-swap
  • 2x 2.5" or 1x 3.5" Fixed SATA3 Drive Bays
System Cooling
Fans
  • 5x 4cm fans with optimal fan speed control
Power Supply
500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input
  • 100-240V, 50-60Hz, 6.6A max
DC Output
  • +3.3V: 12A
  • +5V: 15A
  • +5V standby: 3A
  • +12V: 41A
  • -12V: 0.2A
Certification Platinum Certified
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10C to 35C (50F to 95F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 6018R-MD | SYS-6018R-MD is configurable with up to 2x Hot-Swap Drives drive bays, and designed for optimal performance with 8x DDR4 memory sockets .

The Supermicro SuperServer 6018R-MD | SYS-6018R-MD supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6018R-MD | SYS-6018R-MD boasts 1 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6018R-MD | SYS-6018R-MD Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Data Center Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 2.5" Drives
  • Maximum RAM Capacity: 1TB
