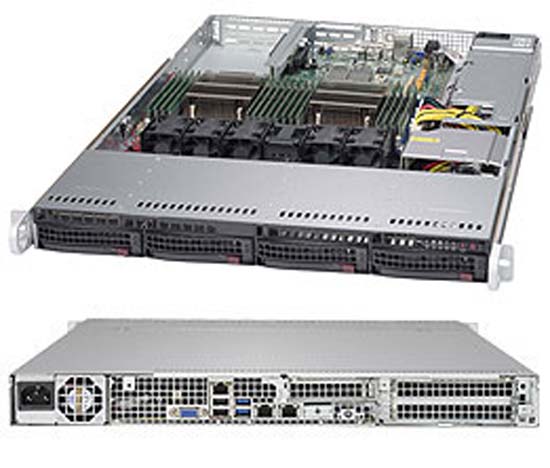

Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW®

Configure a Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW

  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC DDR4 2133MHz; 16x DIMM sockets
  • 2x PCI-E 3.0 x16 Full-height Halt-length, 1x PCI-E 3.0 Low-profile
  • 4x 3.5" Hot-swap SATA HDD bays
  • Intel i350 Dual port Gigabit Ethernet
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0, 2x USB 2.0
  • 600W High-efficiency Digital-switching Power Supply; Platinum Level

Configure From $1,157.20  or  Buy Now




Loading Configurator...

Prices for products are subject to change without notice and Prices do not include shipping and/or handling charges or applicable taxes.

Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW Specifications

3 Years Warranty as Standard

Buy with confidence knowing all Broadberry CyberServe rack servers are backed up by our 3 year warranty, with further warranty upgrade options available.

Configure With Dual Processors

Featuring dual processors, this system enjoys boosts to its performance for multi-threaded programs, allowing for smooth performance for the most demanding CPU intensive applications.

Configure With Up to 1TB Of RAM

Equipable with up to a massive 1TB of RAM, allowing for fast and efficient multi-tasking for the most demanding applications.

Featuring Redundant Power Supply

Coming with a redundant power supply, this system has a backup power source it can fall back on if the original power source were to fail.

Configure With Hot-Swap Drives

The Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW features hot-swap hard drives, giving you more flexibility and allowing you to remove drives without having to shut down the system.

Configure with 3.5" Drives

Configure the Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW with 3.5" drives. These drives are more cost-effective, offer a larger storage capacity and offer more flexibility.


[[
Product SKUs
SYS-6018R-TDW
  • SuperServer 6018R-TDW (Black)
Motherboard

Super X10DDW-i
Processor/Cache
CPU
  • Intel Xeon processor E5-2600 v3 family (up to 145W TDP **)
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 18 Cores / Up to 45MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note ** Please contact your Supermicro sales representative for additional details.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM sockets
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel C612 Express chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel i350 Dual Port Gigabit Ethernet LAN
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

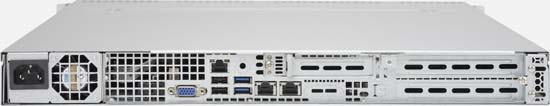

Input / Output
Serial ATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 2x USB 2.0 ports (rear)
  • 1x Type A
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 header
DOM
  • 2x SuperDOM (Disk on Module) ports
Management
Software
  • Intel Node Manager
  • SuperDoctor 5
  • IPMI 2.0
  • NMI
  • SPM
  • SUM
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TQ-605DB
Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 25.6" (650mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 full-height, Half-length slots
  • 1x PCI-E 3.0 Low-profile slot
Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SATA HDD trays
Backplane
SAS/SATA HDD Backplane
System Cooling
Fans
  • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control
Power Supply with Digital Switching Control & PMBus 1.2
600W AC power supply w/ PFC (24-pin)
AC Voltage
  • 100-240 V, 50-60 Hz, 7.5 Amp max
+5V
  • 18 Amp
+5V standby
  • 3 Amp
+12V
  • 49 Amp
-12V
  • 0.5 Amp
+3.3V
  • 15 Amp
Certification
Platinum Certified
[ Test Report ]
System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    5C to 40C (41F to 104F)
  • Non-operating Temperature:
    -40C to 70C (-40F to 158F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
]]

A 1U Supermicro SuperServer based on 2x E5 2600 v4 range of processors, the Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW is configurable with up to 4x Hot-Swap Drives drive bays, and designed for optimal performance with 16x DDR4 memory sockets .

The Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW supports the Xeon E5 2600 v4 Series Processors family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

The Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW boasts 3 PCI-Express slots for expandability, and as with all of our servers it can be fully customised online

Supermicro SuperServer 6018R-TDW | SYS-6018R-TDW Specs
  • Brand: Supermicro
  • U Size: 1U
  • Processor Family: E5 2600 v4
  • Range: Supermicro SuperServers
  • High-Density Twin Servers:
  • Drive Bays: Hot-Swap Drives
  • HDD Size: 3.5" Drives
  • Maximum RAM Capacity: 2TB
